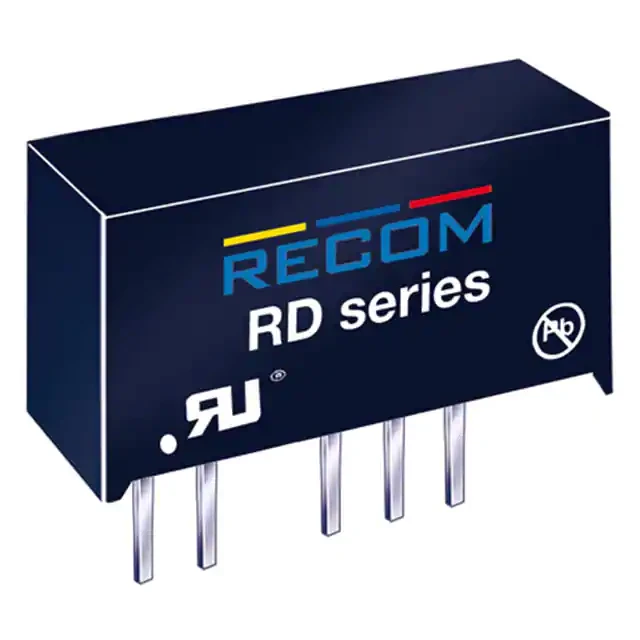

RD-2424D/H
RoHS
RoHS compliant
RoHS compliantPackage 7-SIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-24V 2W
PDF
/
Inventory: 1535
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Weight 2.8g
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Series ECONOLINE RD (2W)
Size / Dimension 0.77Lx0.28W x 0.40 H 19.7mmx7.1mmx10.2mm
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 2W
Subcategory Other Analog ICs
Max Power Dissipation 2W
Technology HYBRID
Terminal Position SINGLE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XSMA-T5
Number of Outputs 2
Qualification Status Not Qualified
Efficiency 86%
Voltage - Isolation 2kV
Voltage - Input (Max) 26.4V
Output Voltage 24V
Max Output Current 42mA
Voltage - Input (Min) 21.6V
Input Voltage-Nom 24V
Trim/Adjustable Output NO
Current - Output (Max) 42mA 42mA
Output Current 42mA
Max Output Voltage 24V
Voltage - Output 2 -24V
Total Power Output-Max 2W
Dimensions
Height 10.2mm
Length 19.65mm
Width 7.05mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
