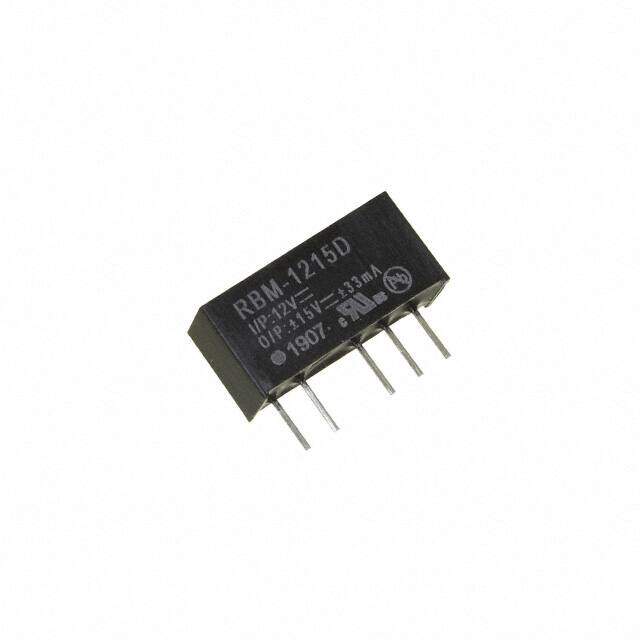

RBM-1215D
RoHS
RoHS compliant
RoHS compliantPackage 6-SIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC/DC converter 12 VDC 15 VDC 1 W, RBM-1215D, Recom
PDF
/
Buying Options
Total Price: USD $7.3
Unit Price: USD $7.2952
≥1 USD $7.2952
≥10 USD $7.19136
≥100 USD $7.08664
≥500 USD $6.87808
≥1000 USD $6.66952
≥3000 USD $6.461136
Inventory: 88
Minimum: 1
-
+
Technical Details
Technical
Nominal Input Voltage 12V
Max Output Power 1W
Isolation Isolated
Current - Output 2 33mA
Max Input Voltage (DC) 13.2V
Min Input Voltage (DC) 10.8V
Current - Output 1 33mA
Voltage - Output 2 -15V
Max Output Voltage 15V
Output Power 1W
Output Current 33mA
Current - Output (Max) 33mA 33mA
Trim/Adjustable Output NO
Input Voltage-Nom 12V
Max Output Current 33mA
Output Voltage 15V
Voltage - Isolation 3kV
Efficiency 84%
Qualification Status Not Qualified
Number of Outputs 2
Depth 6mm
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 1W
Subcategory Other Analog ICs
Applications ITE (Commercial), Medical
Type Isolated Module
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 0.65Lx0.24W x 0.30 H 16.5mmx6.0mmx7.7mm
Series ECONOLINE RBM (1W)
Packaging Tube
Operating Temperature -40°C~85°C
Dimensions
Height 7.7mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Physical
Weight 1.3g
Number of Pins 5
Package / Case 6-SIP Module, 5 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
