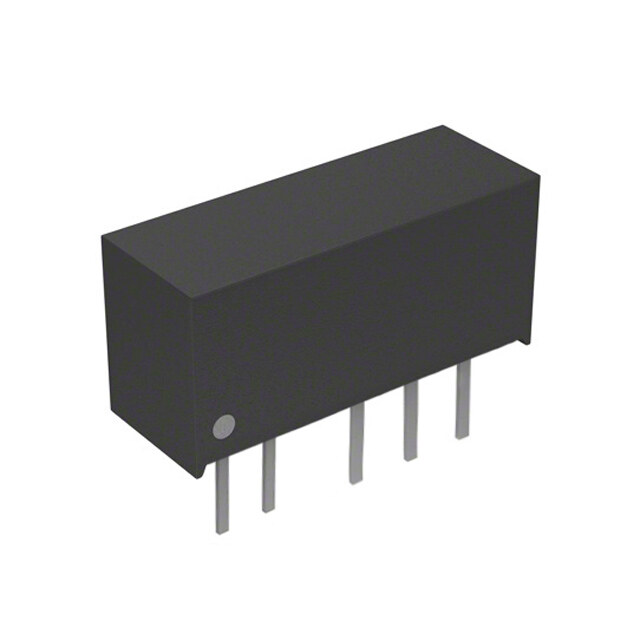

RBM-0515S
RoHS
RoHS compliant
RoHS compliantPackage 6-SIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 1W 5VIN 15VOUT
PDF
/
Buying Options
Total Price: USD $6.95
Unit Price: USD $6.952
≥1 USD $6.952
≥10 USD $6.85344
≥100 USD $6.754
≥500 USD $6.555296
≥1000 USD $6.356768
≥3000 USD $6.158064
Inventory: 47
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 6mm
Height 7.7mm
Technical
Min Input Voltage (DC) 4.5V
Max Input Voltage (DC) 5.5V
Nominal Output Voltage 15V
Max Output Power 1W
Nominal Input Voltage 5V
Current - Output 1 66mA
Max Output Voltage 15V
Output Power 1W
Output Current 66mA
Trim/Adjustable Output NO
Input Voltage-Nom 5V
Max Output Current 66mA
Output Voltage 15V
Voltage - Input (Max) 5.5V
Voltage - Isolation 3kV
Efficiency 84%
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-PSMA-P5
Depth 16.55mm
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 1W
Subcategory Other Analog ICs
Applications ITE (Commercial), Medical
Type Isolated Module
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 0.65Lx0.24W x 0.30 H 16.5mmx6.0mmx7.7mm
Series ECONOLINE RBM (1W)
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Weight 1.3g
Package / Case 6-SIP Module, 5 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
