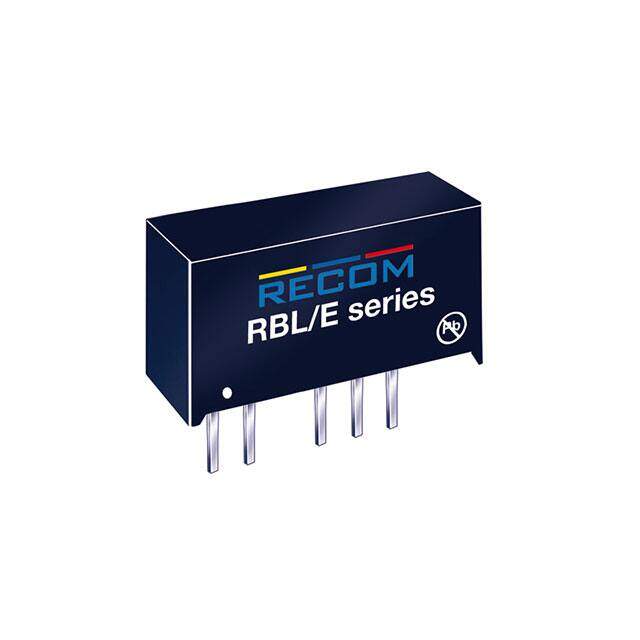

RBL-0505S/E

Recom Power
RoHS
RoHS RoHS compliant
Package /
Category Power Supplies - Board Mount / DC DC Converters
Description DC/DC CONVERTER 0.25W 5VIN 5VOUT
PDF
/
Inventory: 1358
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 9 Weeks

Physical

Surface Mount NO
Weight 2.2g

Technical

Operating Temperature -40°C~100°C
Series ECONOLINE RBL/E (0.25W)
Feature SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Max Power Dissipation 250mW
Technology HYBRID
Terminal Position SINGLE
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 2.54mm
Depth 19.6mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PSMA-P5
Number of Outputs 1
Efficiency 82%
Voltage - Isolation 1kV
Voltage - Input (Max) 5.5V
Output Voltage 5V
Max Output Current 50mA
Input Voltage-Nom 5V
Trim/Adjustable Output NO
Output Current 50mA
Output Power 250mW
Max Output Voltage 5V
Current - Output 1 50mA
Max Output Power 250mW
Max Input Voltage (DC) 5.5V
Min Input Voltage (DC) 4.5V
Nominal Input Voltage (DC) 5V

Dimensions

Height 10.2mm
Length 19.6mm
Width 6mm

Compliance

REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
