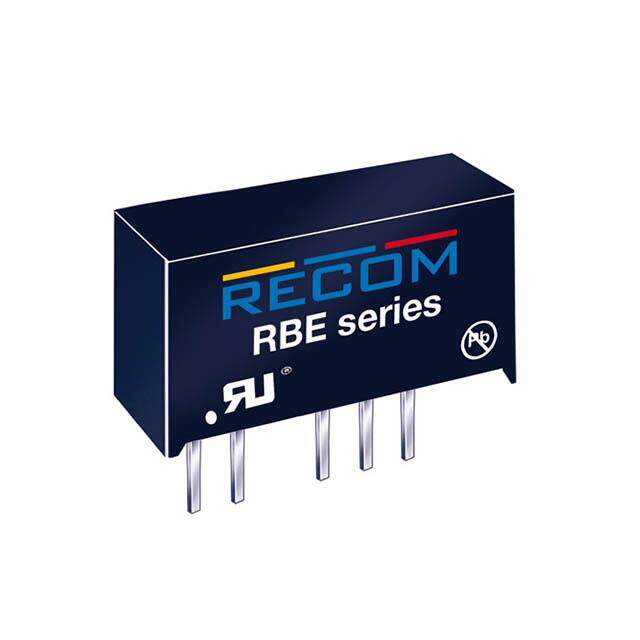

RBE-0505S image
Favorite
RBE-0505S image
Favorite

RBE-0505S

Recom Power
RoHS
RoHS RoHS compliant
Package 6-SIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description 1W DC/DC-Converter 'ECONOLINE' SIP7 1kV unreg; V. In: 05; V. Out: 05; mA. Out: 200
PDF
/
Buying Options
Total Price: USD $2.82
Unit Price: USD $2.816
≥1 USD $2.816
≥10 USD $2.77552
≥100 USD $2.73504
≥500 USD $2.654432
≥1000 USD $2.574
≥3000 USD $2.493568
Inventory: 8973
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC

Dimensions

Height 10.2mm

Technical

Switching Frequency 82kHz
Min Input Voltage (DC) 4.5V
Max Input Voltage (DC) 5.5V
Nominal Output Voltage 5V
Isolation Isolated
Max Output Power 1W
Nominal Input Voltage 5V
Current - Output 1 200mA
Max Output Voltage 5V
Output Power 1W
Output Current 200mA
Min Supply Voltage 4.5V
Max Supply Voltage 5.5V
Trim/Adjustable Output NO
Input Voltage-Nom 5V
Max Output Current 200mA
Output Voltage 5V
Voltage - Isolation 1kV
Efficiency 76%
Number of Outputs 1
Depth 6mm
Number of Functions 1
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 1W
Power Rating 1W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.77Lx0.24W x 0.40 H 19.7mmx6.0mmx10.2mm
Series ECONOLINE RBE (E-Series) (1W)
Packaging Tube
Operating Temperature -40°C~85°C

Physical

Weight 2.2g
Number of Pins 5
Package / Case 6-SIP Module, 5 Leads
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 6 Weeks
