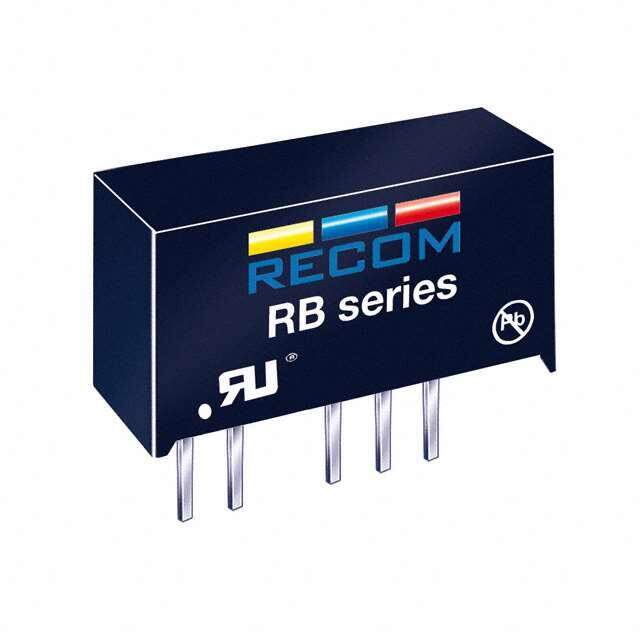

RB-1224D/P
RoHS
RoHS compliant
RoHS compliantPackage 7-SIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 1W 12VIN +/-24VOUT
PDF
/
Inventory: 8803
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Length 19.6mm
Height 10.2mm
Technical
Nominal Input Voltage 12V
Total Power Output-Max 0.504W
Voltage - Output 2 -24V
Max Output Voltage 24V
Output Power 1W
Output Current 21mA
Current - Output (Max) 21mA 21mA
Trim/Adjustable Output NO
Input Voltage-Nom 12V
Voltage - Input (Min) 10.8V
Max Output Current 21mA
Output Voltage 24V
Voltage - Input (Max) 13.2V
Voltage - Isolation 1kV
Efficiency 84%
Qualification Status Not Qualified
Number of Outputs 2
JESD-30 Code R-XSMA-P5
Pin Count 7/5
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 1W
Subcategory Other Analog ICs
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 0.77Lx0.24W x 0.40 H 19.7mmx6.0mmx10.2mm
Series ECONOLINE RB (1W)
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Weight 2.2g
Package / Case 7-SIP Module, 5 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
