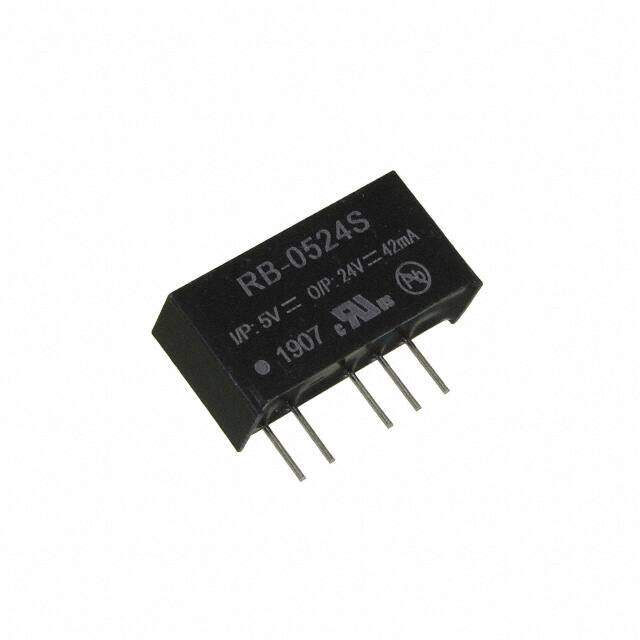

RB-0524S
RoHS
RoHS compliant
RoHS compliantPackage 7-SIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 1W 5VIN 24VOUT
PDF
/
Buying Options
Total Price: USD $5.72
Unit Price: USD $5.72
≥1 USD $5.72
≥10 USD $5.64256
≥100 USD $5.56072
≥500 USD $5.396864
≥1000 USD $5.233184
≥3000 USD $5.06968
Inventory: 174
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height 10.2mm
Technical
Nominal Input Voltage 5V
Max Output Voltage 24V
Output Power 1W
Output Current 42mA
Trim/Adjustable Output NO
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Max Output Current 42mA
Output Voltage 24V
Voltage - Input (Max) 5.5V
Voltage - Isolation 1kV
Efficiency 85%
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-XSMA-P5
Pin Count 7/5
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 1W
Subcategory Other Analog ICs
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 0.77Lx0.24W x 0.40 H 19.7mmx6.0mmx10.2mm
Series ECONOLINE RB (1W)
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Weight 2.2g
Package / Case 7-SIP Module, 5 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
