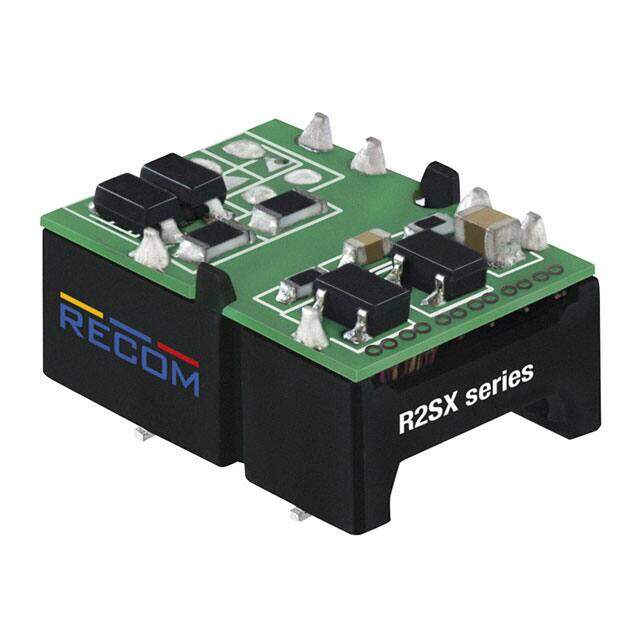

R2SX-1205/H-R
RoHS
RoHS compliant
RoHS compliantPackage 10-SMD Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
2W DC/DC-CONVERTER 'ECONOLINE' S
PDF
/
Buying Options
Total Price: USD $4.39
Unit Price: USD $4.386399
≥1 USD $4.386399
Inventory: 9732
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Current - Output (Max) 400mA
Voltage - Input (Min) 10.8V
Voltage - Output 1 5V
Voltage - Input (Max) 14.2V
Voltage - Isolation 3kV
Efficiency 84%
Number of Outputs 1
Power (Watts) 2W
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.60Lx0.42W x 0.31 H 15.2mmx10.7mmx8.0mm
Series ECONOLINE R2SX (2W)
Operating Temperature -40°C~75°C
Physical
Package / Case 10-SMD Module, 6 Leads
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 9 Weeks
