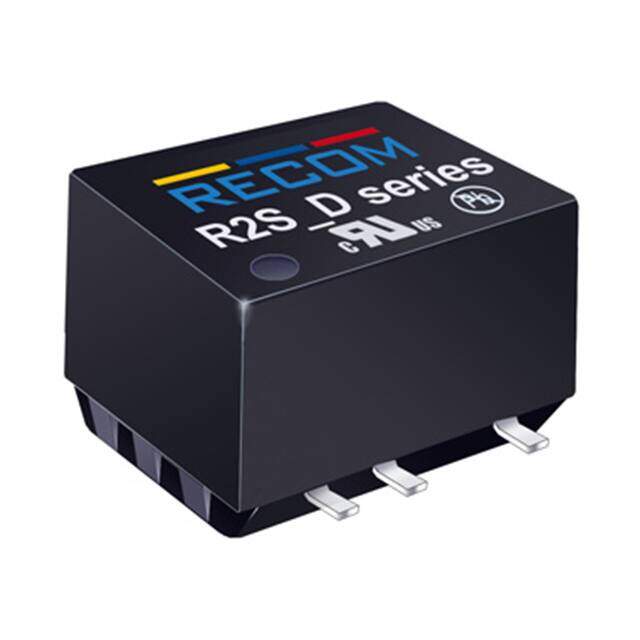

R2S-2409
RoHS
RoHS compliant
RoHS compliantPackage 8-SMD Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 2W 24VIN 09VOUT
PDF
/
Buying Options
Total Price: USD $12.04
Unit Price: USD $12.037648
≥1 USD $12.037648
≥10 USD $11.356274
≥100 USD $10.713466
≥500 USD $10.107044
≥1000 USD $9.534941
Inventory: 5311
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height 8.7mm
Technical
Nominal Input Voltage 24V
Total Power Output-Max 2W
Max Output Voltage 9V
Output Power 2W
Output Current 222mA
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 21.6V
Max Output Current 222mA
Output Voltage 9V
Voltage - Input (Max) 26.4V
Voltage - Isolation 1kV
Efficiency 85%
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-XDMA-F5
Time@Peak Reflow Temperature-Max (s) 30; 5
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) 245; 255
Terminal Form FLAT
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 2W
Subcategory Other Analog ICs
Additional Feature SEATED HGT CALCULATED
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature SCP
Size / Dimension 0.50Lx0.42W x 0.35 H 12.8mmx10.7mmx9.0mm
Series ECONOLINE R2S (2W)
Packaging Tube
Operating Temperature -40°C~100°C
Physical
Weight 1.4g
Package / Case 8-SMD Module, 5 Leads
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
