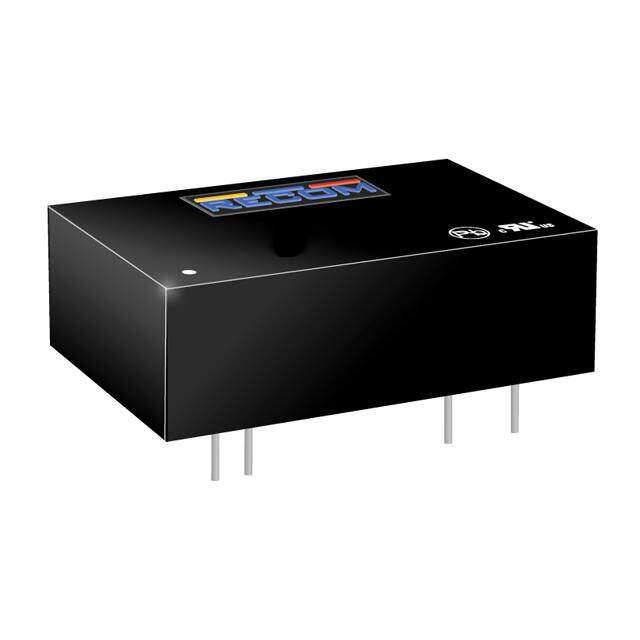

R24P23.3S/R8
RoHS
RoHS compliant
RoHS compliantPackage 7-SIP Module, 4 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
RECOM POWER R24P23.3S/R8Isolated Board Mount DC/DC Converter, Medical, Fixed, 1 Output, 21.6 V, 26.4 V, 2 W, 3.3 V
PDF
/
Buying Options
Total Price: USD $21.17
Unit Price: USD $21.1728
≥1 USD $21.1728
≥10 USD $20.68176
≥100 USD $20.52072
≥500 USD $20.199872
≥1000 USD $19.238032
≥3000 USD $18.1456
Inventory: 166
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 7-SIP Module, 4 Leads
Weight 4.3g
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Series ECONOLINE RxxPxx/R (1W)
Size / Dimension 0.77Lx0.39W x 0.49 H 19.7mmx9.8mmx12.5mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial), Medical
Max Power Dissipation 2W
Technology HYBRID
Terminal Position SINGLE
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 2.54mm
Depth 19.5mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PSMA-P5
Number of Outputs 1
Efficiency 78%
Voltage - Isolation 8kV
Voltage - Input (Max) 26.4V
Output Voltage 3.3V
Max Output Current 600mA
Input Voltage-Nom 24V
Trim/Adjustable Output NO
Output Current 600mA
Output Power 2W
Max Output Voltage 3.3V
Current - Output 1 600mA
Nominal Input Voltage 24V
Max Output Power 2W
Max Input Voltage (DC) 26.4V
Min Input Voltage (DC) 21.6V
Dimensions
Height 12.5mm
Width 9.8mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
