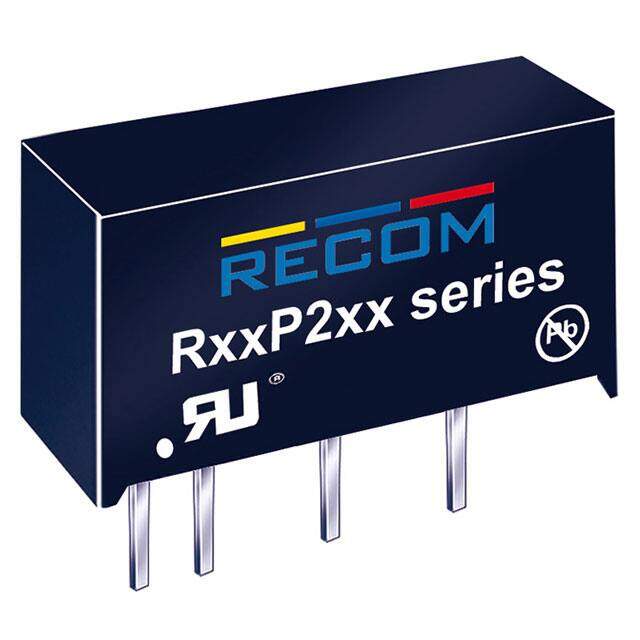

R24P205S/X2
RoHS
RoHS compliant
RoHS compliantPackage 7-SIP Module, 4 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
Isolated DC/DC Converters 2W 24VIN 05VOUT ALT PINOUT
PDF
/
Buying Options
Total Price: USD $27.69
Unit Price: USD $27.690226
≥1 USD $27.690226
≥10 USD $26.122856
≥100 USD $24.644208
≥500 USD $23.249249
≥1000 USD $21.933257
Inventory: 1385
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 9.8mm
Height 12.5mm
Technical
Nominal Input Voltage 24V
Total Power Output-Max 2W
Current - Output 1 400mA
Max Output Voltage 5V
Output Power 2W
Output Current 400mA
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 21.6V
Max Output Current 400mA
Output Voltage 5V
Voltage - Input (Max) 26.4V
Voltage - Isolation 6.4kV
Efficiency 75%
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-XSMA-P4
Pin Count 7/4
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 2W
Subcategory Other Analog ICs
Applications ITE (Commercial), Medical
Type Isolated Module
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Size / Dimension 0.77Lx0.39W x 0.49 H 19.5mmx9.8mmx12.5mm
Series ECONOLINE RxxP2xx (2W)
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Weight 4.3g
Package / Case 7-SIP Module, 4 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
