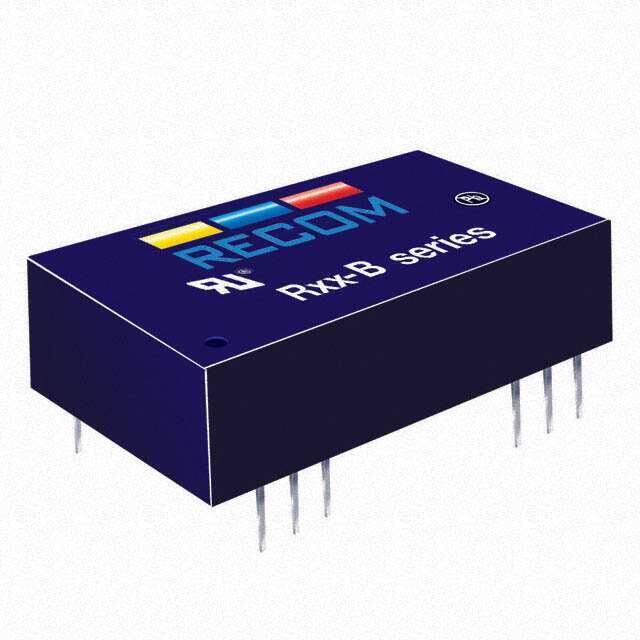

R24-100B
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 56-135V 5W
PDF
/
Buying Options
Total Price: USD $42.35
Unit Price: USD $42.3456
≥1 USD $42.3456
≥10 USD $40.9728
≥100 USD $40.42808
≥500 USD $39.144512
≥1000 USD $37.3736
≥3000 USD $36.300176
Inventory: 609
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 20.3mm
Height 9.4mm
Technical
Min Input Voltage (DC) 21V
Max Input Voltage (DC) 27V
Nominal Output Voltage 100V
Isolation Isolated
Max Output Power 5W
Nominal Input Voltage 24V
Current - Output 1 50mA
Control Mode VOLTAGE-MODE
Max Output Voltage 135V
Output Power 5W
Output Current 50mA
Trim/Adjustable Output YES
Input Voltage-Nom 24V
Voltage - Output 1 56V~135V
Max Output Current 50mA
Output Voltage 135V
Voltage - Isolation 3kV
Efficiency 84%
Qualification Status Not Qualified
Number of Outputs 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 31.8mm
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 5W
Applications ITE (Commercial)
Type High Voltage - Isolated Module
ECCN Code EAR99
Number of Terminations 12
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature SCP
Size / Dimension 1.25Lx0.80W x 0.37 H 31.8mmx20.3mmx9.4mm
Series INNOLINE Rxx-B (5W)
Packaging Tube
Operating Temperature -40°C~85°C With Derating
Physical
Weight 12g
Number of Pins 12
Package / Case 24-DIP Module
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
