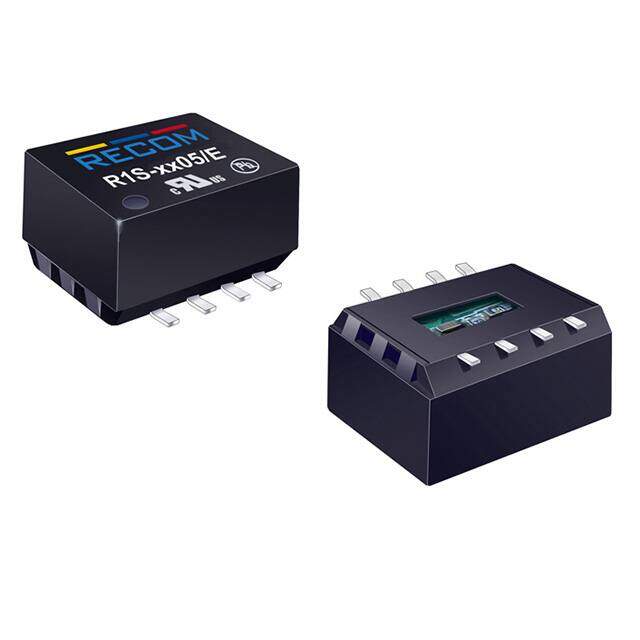

R1S8-1205/E
RoHS
RoHS compliant
RoHS compliantPackage 8-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 1W 12VIN 05VOUT
PDF
/
Inventory: 4406
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-SMD Module
Weight 1.1g
Technical
Operating Temperature -40°C~100°C
Packaging Tube
Series ECONOLINE R1S/E (1W)
Size / Dimension 0.50Lx0.42W x 0.26 H 12.8mmx10.7mmx6.7mm
Feature SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Subcategory Other Analog ICs
Max Power Dissipation 1W
Technology HYBRID
Terminal Position DUAL
Terminal Form GULL WING
Number of Functions 1
Terminal Pitch 2.54mm
JESD-30 Code R-XDMA-G8
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 80%
Voltage - Isolation 1kV
Voltage - Input (Max) 13.2V
Output Voltage 5V
Max Output Current 200mA
Voltage - Input (Min) 10.8V
Input Voltage-Nom 12V
Trim/Adjustable Output NO
Output Current 200mA
Output Power 1W
Max Output Voltage 5V
Current - Output 1 200mA
Total Power Output-Max 1W
Nominal Input Voltage (DC) 12V
Dimensions
Height 6.7mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
