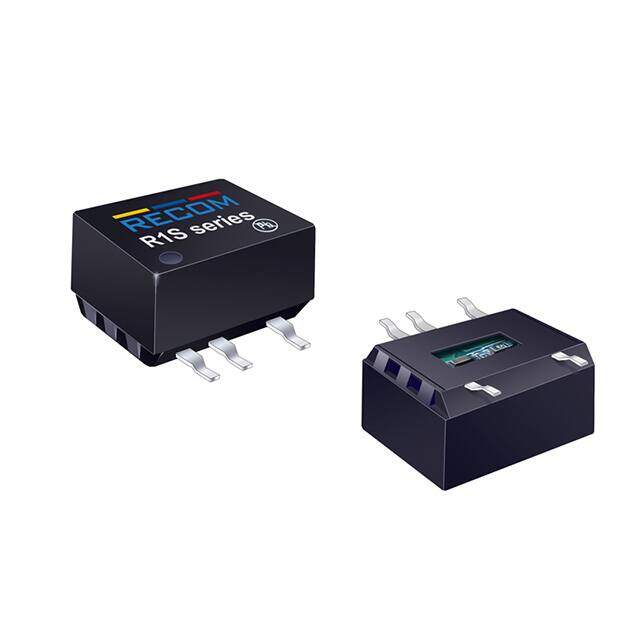

R1S8-0515
RoHS
RoHS compliant
RoHS compliantPackage 8-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 15V 1W
PDF
/
Inventory: 3942
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 6.7mm
Technical
Isolation Isolated
Nominal Input Voltage 5V
Total Power Output-Max 1W
Max Output Voltage 15V
Output Power 1W
Output Current 66mA
Trim/Adjustable Output NO
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Max Output Current 66mA
Output Voltage 15V
Voltage - Input (Max) 5.5V
Voltage - Isolation 1kV
Efficiency 82%
Qualification Status Not Qualified
Number of Outputs 1
Pin Count 8
Time@Peak Reflow Temperature-Max (s) 5
Depth 10.7mm
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) 255
Terminal Form GULL WING
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 1W
Subcategory Other Analog ICs
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 0.50Lx0.42W x 0.28 H 12.8mmx10.7mmx7.0mm
Series ECONOLINE R1S (1W)
Packaging Tube
Operating Temperature -40°C~100°C
Physical
Weight 1.1g
Number of Pins 8
Package / Case 8-SMD Module
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
