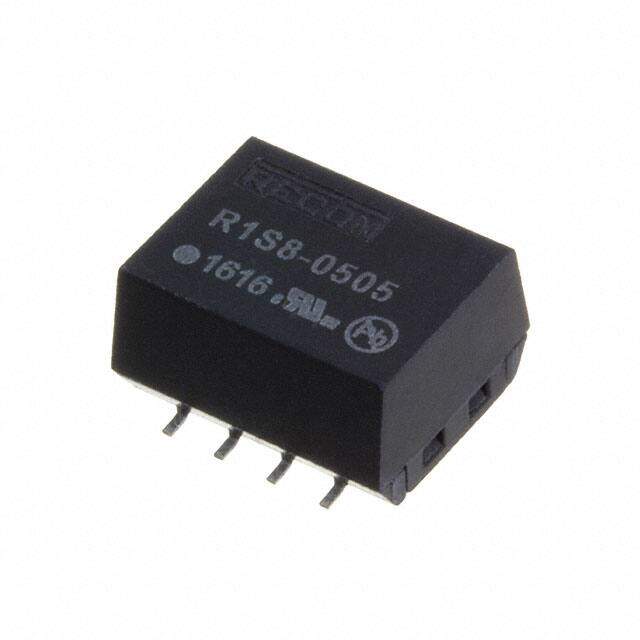

R1S8-0505 image
Favorite
R1S8-0505 image
Favorite

R1S8-0505

Recom Power
RoHS
RoHS RoHS compliant
Package 8-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER 5V 1W
PDF
/
Buying Options
Total Price: USD $6.85
Unit Price: USD $6.8464
≥1 USD $6.8464
≥10 USD $6.74608
≥100 USD $6.6484
≥500 USD $6.452864
≥1000 USD $6.257152
≥3000 USD $6.061616
Inventory: 47
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Mount PCB, Surface Mount
Mounting Type Surface Mount
Package / Case 8-SMD Module
Number of Pins 8
Weight 1.1g

Technical

Operating Temperature -40°C~100°C
Packaging Tube
Series ECONOLINE R1S (1W)
Size / Dimension 0.50Lx0.42W x 0.28 H 12.8mmx10.7mmx7.0mm
Feature SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Subcategory Other Analog ICs
Max Power Dissipation 1W
Technology HYBRID
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 255
Number of Functions 1
Terminal Pitch 2.54mm
Depth 10.7mm
Time@Peak Reflow Temperature-Max (s) 5
Pin Count 8
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 78%
Voltage - Isolation 1kV
Output Voltage 5V
Max Output Current 200mA
Input Voltage-Nom 5V
Trim/Adjustable Output NO
Output Current 200mA
Output Power 1W
Max Output Voltage 5V
Current - Output 1 200mA
Nominal Input Voltage 5V
Max Output Power 1W
Isolation Isolated
Nominal Output Voltage 5V
Max Input Voltage (DC) 5.5V
Min Input Voltage (DC) 4.5V

Dimensions

Height 6.7mm

Compliance

REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
