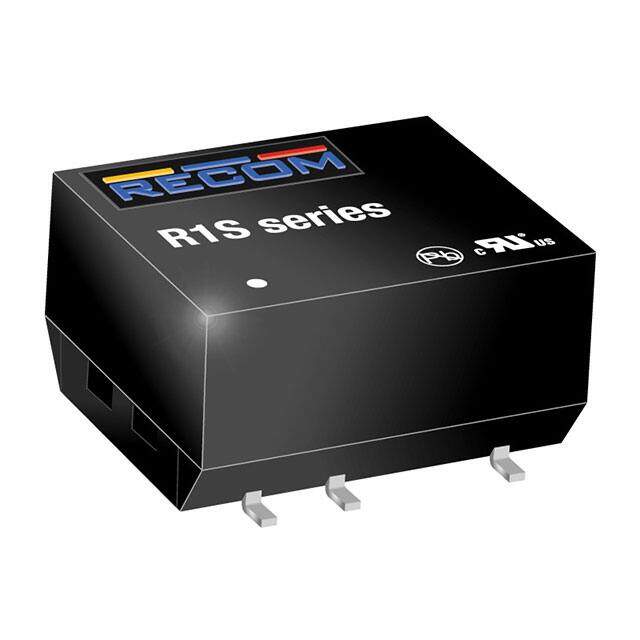

R1S12-2409 image
Favorite
R1S12-2409 image
Favorite

R1S12-2409

Recom Power
RoHS
RoHS RoHS compliant
Package 12-SMD Module, 10 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description CONV DC/DC 1W 24VIN 09VOUT
PDF
/
Inventory: 8491
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Height 6.7mm

Technical

Nominal Input Voltage 24V
Total Power Output-Max 1W
Max Output Voltage 9V
Output Power 1W
Output Current 111mA
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 21.6V
Max Output Current 111mA
Output Voltage 9V
Voltage - Input (Max) 26.4V
Voltage - Isolation 1kV
Efficiency 78%
Qualification Status Not Qualified
Number of Outputs 1
Time@Peak Reflow Temperature-Max (s) 5
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) 255
Terminal Form GULL WING
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 1W
Subcategory Other Analog ICs
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 0.60Lx0.42W x 0.28 H 15.2mmx10.7mmx7.0mm
Series ECONOLINE R1S (1W)
Packaging Tube
Operating Temperature -40°C~100°C

Physical

Weight 1.2g
Number of Pins 10
Package / Case 12-SMD Module, 10 Leads
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 10 Weeks
