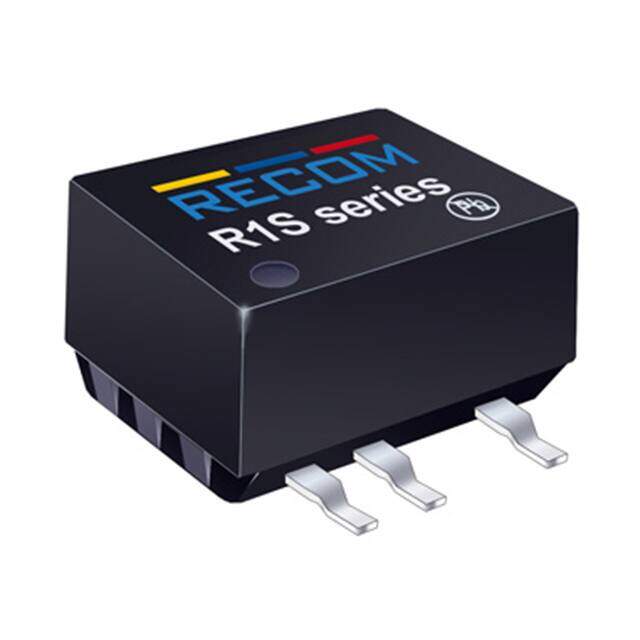

R1S-3.312 image
Favorite
R1S-3.312 image
Favorite

R1S-3.312

Recom Power
RoHS
RoHS RoHS compliant
Package 8-SMD Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER 12V 1W
PDF
/
Buying Options
Total Price: USD $7.6
Unit Price: USD $7.595568
≥1 USD $7.595568
≥10 USD $7.165633
≥100 USD $6.760024
≥500 USD $6.377381
≥1000 USD $6.016399
Inventory: 4260
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Height 6.7mm

Technical

Isolation Isolated
Nominal Input Voltage 3.3V
Total Power Output-Max 1W
Max Output Voltage 12V
Output Power 1W
Output Current 84mA
Trim/Adjustable Output NO
Input Voltage-Nom 3.3V
Voltage - Input (Min) 3V
Max Output Current 84mA
Output Voltage 12V
Voltage - Input (Max) 3.6V
Voltage - Isolation 1kV
Efficiency 80%
Qualification Status Not Qualified
Number of Outputs 1
Pin Count 8/5
Time@Peak Reflow Temperature-Max (s) 5
Depth 10.7mm
Number of Functions 1
Peak Reflow Temperature (Cel) 255
Terminal Form GULL WING
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 1W
Subcategory Other Analog ICs
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 0.50Lx0.42W x 0.28 H 12.8mmx10.7mmx7.0mm
Series ECONOLINE R1S (1W)
Packaging Tube
Operating Temperature -40°C~100°C

Physical

Weight 1g
Number of Pins 5
Package / Case 8-SMD Module, 5 Leads
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 10 Weeks
