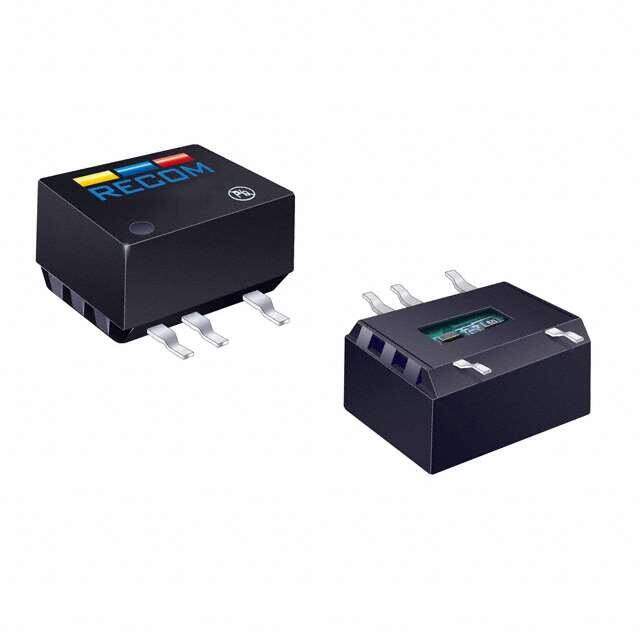

R1D10-0515
RoHS
RoHS compliant
RoHS compliantPackage 10-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 1W DUAL +/-15VOUT SMD
PDF
/
Buying Options
Total Price: USD $7.05
Unit Price: USD $7.052838
≥1 USD $7.052838
≥10 USD $6.653621
≥100 USD $6.276997
≥500 USD $5.921692
≥1000 USD $5.586506
Inventory: 1271
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount PCB, Surface Mount
Mounting Type Surface Mount
Package / Case 10-SMD Module
Number of Pins 10
Weight 1.2g
Technical
Operating Temperature -40°C~100°C
Packaging Tube
Series ECONOLINE R1D (1W)
Size / Dimension 0.60Lx0.42W x 0.28 H 15.2mmx10.7mmx7.0mm
Feature SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 10
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Subcategory Other Analog ICs
Power Rating 1W
Max Power Dissipation 1W
Technology HYBRID
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 255
Number of Functions 1
Depth 10.7mm
Time@Peak Reflow Temperature-Max (s) 5
Pin Count 10
Number of Outputs 2
Qualification Status Not Qualified
Efficiency 82%
Voltage - Isolation 1kV
Voltage - Input (Max) 5.5V
Output Voltage 15V
Max Output Current 33mA
Input Voltage-Nom 5V
Trim/Adjustable Output NO
Current - Output (Max) 33mA 33mA
Output Current 33mA
Output Power 1W
Max Output Voltage 15V
Current - Output 1 33mA
Nominal Input Voltage 5V
Max Output Power 1W
Isolation Isolated
Nominal Output Voltage -15V
Current - Output 2 -33mA
Max Input Voltage (DC) 5V
Min Input Voltage (DC) 4.5V
Dimensions
Height 6.7mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
