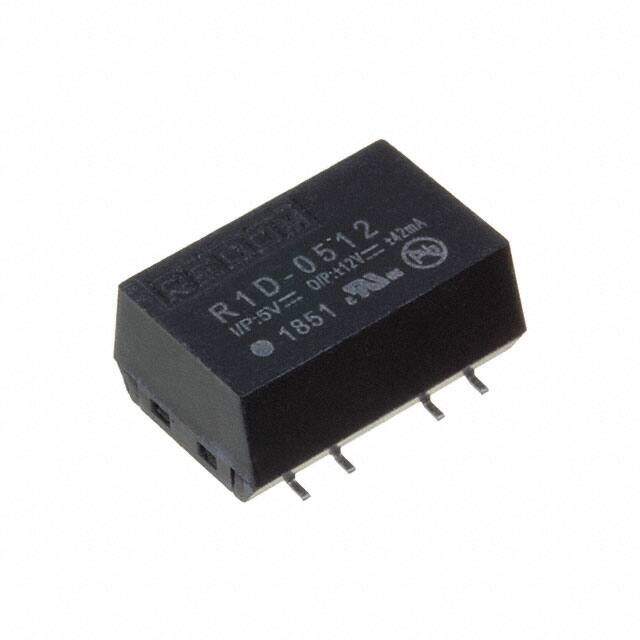

R1D-0512
RoHS
RoHS compliant
RoHS compliantPackage 10-SMD Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 1W DUAL +/-12VOUT SMD
PDF
/
Buying Options
Total Price: USD $7.2
Unit Price: USD $7.1984
≥1 USD $7.1984
≥10 USD $7.09808
≥100 USD $6.996
≥500 USD $6.79008
≥1000 USD $6.58416
≥3000 USD $6.378504
Inventory: 137
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 10.7mm
Height 6.7mm
Technical
Min Input Voltage (DC) 4.5V
Max Input Voltage (DC) 5.5V
Current - Output 2 42mA
Isolation Isolated
Max Output Power 1W
Nominal Input Voltage 5V
Current - Output 1 42mA
Voltage - Output 2 -12V
Max Output Voltage 12V
Output Power 1W
Output Current 42mA
Current - Output (Max) 42mA 42mA
Trim/Adjustable Output NO
Input Voltage-Nom 5V
Max Output Current 42mA
Output Voltage 12V
Voltage - Isolation 1kV
Efficiency 80%
Qualification Status Not Qualified
Number of Outputs 2
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 15.24mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 1W
Power Rating 1W
Subcategory Other Analog ICs
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 0.60Lx0.42W x 0.28 H 15.2mmx10.7mmx7.0mm
Series ECONOLINE R1D (1W)
Packaging Tube
Operating Temperature -40°C~100°C
Physical
Weight 1.2g
Number of Pins 6
Package / Case 10-SMD Module, 6 Leads
Mounting Type Surface Mount
Mount PCB, Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
