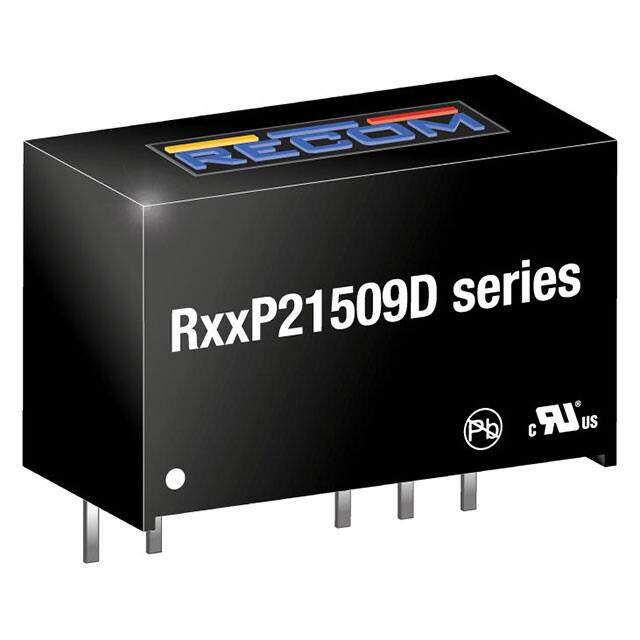

R12P21509D
RoHS
RoHS compliant
RoHS compliantPackage 7-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Converter;DC-DC;[email protected], [email protected];10.8-13.2V In;Enclosed;PCB Mount;RxxP2
PDF
/
Buying Options
Total Price: USD $3.56
Unit Price: USD $3.559476
≥1 USD $3.559476
≥10 USD $3.091158
≥100 USD $2.813831
Inventory: 51
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case 7-SIP Module
Weight 4.3g
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Series ECONOLINE RxxP2xx (2W)
Size / Dimension 0.77Lx0.39W x 0.49 H 19.5mmx9.8mmx12.5mm
Feature SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial), Medical
Power (Watts) 1W
Additional Feature ADDITIONAL -9 VOLT OUTPUT VOLTAGE ALSO AVAILABLE
Max Power Dissipation 1W
Technology HYBRID
Terminal Position SINGLE
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 12.5mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 7/5
JESD-30 Code R-XSMA-P5
Number of Outputs 2
Efficiency 82 %
Voltage - Isolation 6.4kV
Voltage - Input (Max) 13.2V
Output Voltage 15V
Max Output Current 111mA
Voltage - Input (Min) 10.8V
Input Voltage-Nom 12V
Trim/Adjustable Output NO
Current - Output (Max) 66mA 111mA
Output Current 67mA
Output Power 2W
Max Output Voltage 15V
Voltage - Output 2 -9V
Current - Output 1 67mA
Total Power Output-Max 2W
Nominal Input Voltage 12V
Dimensions
Height 12.5mm
Length 19.5mm
Width 9.8mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
