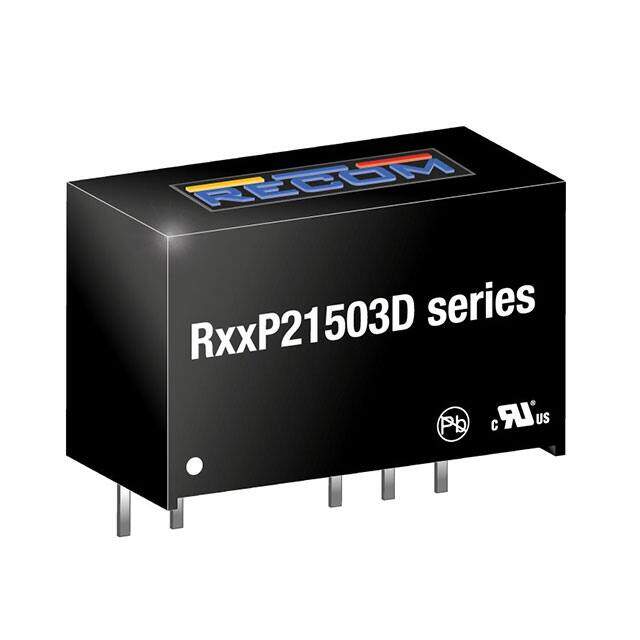

R12P21503D
RoHS
RoHS compliant
RoHS compliantPackage 7-SIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 15V -3V
PDF
/
Buying Options
Total Price: USD $8.91
Unit Price: USD $8.9144
≥1 USD $8.9144
≥10 USD $8.84928
≥100 USD $8.78152
≥500 USD $8.646176
≥1000 USD $8.376016
≥3000 USD $7.6472
Inventory: 1162
Minimum: 1
-
+
Technical Details
Physical
Surface Mount NO
Package / Case 7-SIP Module, 5 Leads
Mounting Type Through Hole
Weight 4.3g
Supply Chain
Factory Lead Time 9 Weeks
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 9.8mm
Length 19.5mm
Height 12.5mm
Technical
Total Power Output-Max 2W
Voltage - Output 2 -3V
Max Output Voltage 15V
Output Power 2W
Current - Output (Max) 93mA 185mA
Trim/Adjustable Output NO
Input Voltage-Nom 12V
Voltage - Input (Min) 10.8V
Output Voltage 3V
Voltage - Input (Max) 13.2V
Voltage - Isolation 5.2kV
Efficiency 84%
Number of Outputs 2
JESD-30 Code R-PSMA-T5
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Power (Watts) 2W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.77Lx0.39W x 0.49 H 19.6mmx9.8mmx12.5mm
Series RxxP2xxyyD (2W)
Operating Temperature -40°C~90°C
