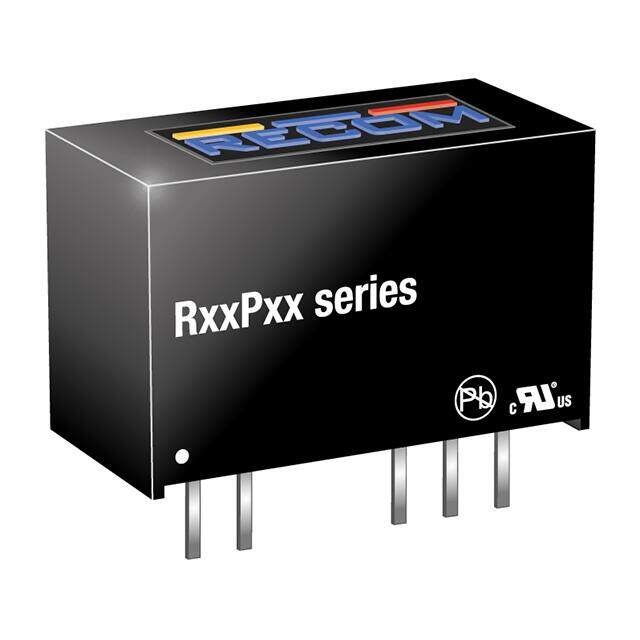

R09P05D
RoHS
RoHS compliant
RoHS compliantPackage 7-SIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 1W 09VIN +/-05VOUT
PDF
/
Buying Options
Total Price: USD $12.57
Unit Price: USD $12.573794
≥1 USD $12.573794
≥10 USD $11.862066
≥100 USD $11.190628
≥500 USD $10.557197
≥1000 USD $9.959621
Inventory: 1569
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 9.8mm
Length 19.5mm
Height 12.5mm
Technical
Current - Output 2 100mA
Total Power Output-Max 1W
Current - Output 1 -100mA
Voltage - Output 2 -5V
Max Output Voltage 5V
Output Power 1W
Output Current 100mA
Current - Output (Max) 100mA 100mA
Trim/Adjustable Output NO
Input Voltage-Nom 9V
Voltage - Input (Min) 8.1V
Max Output Current 100mA
Output Voltage 5V
Voltage - Input (Max) 9.9V
Voltage - Isolation 6.4kV
Efficiency 75%
Number of Outputs 2
JESD-30 Code R-XSMA-P5
Pin Count 7/5
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 1W
Applications ITE (Commercial), Medical
Type Isolated Module
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 0.77Lx0.39W x 0.49 H 19.7mmx9.8mmx12.5mm
Series ECONOLINE RxxPxx (1W)
Packaging Tube
Operating Temperature -40°C~90°C
Physical
Weight 4.3g
Package / Case 7-SIP Module, 5 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
