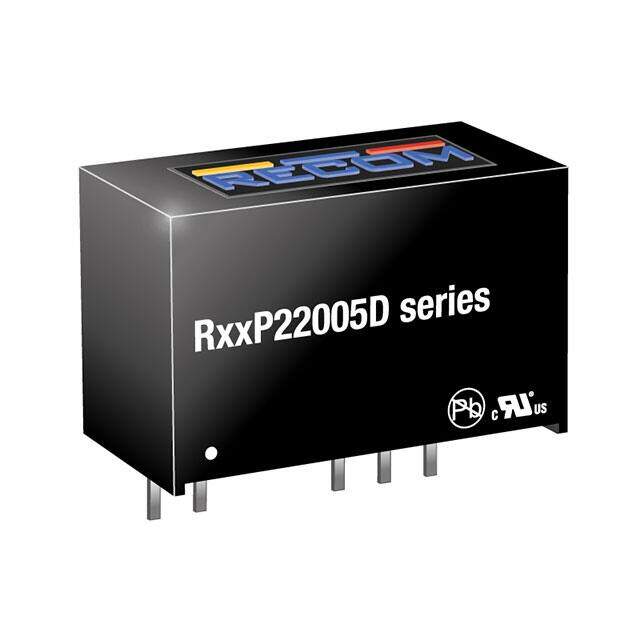

R05P22005D
RoHS
RoHS compliant
RoHS compliantPackage 7-SIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 2W 05VIN +20/-5VOUT T
PDF
/
Buying Options
Total Price: USD $7.44
Unit Price: USD $7.436
≥1 USD $7.436
≥10 USD $7.32864
≥100 USD $7.22216
≥500 USD $7.01008
≥1000 USD $6.797472
≥3000 USD $6.585128
Inventory: 1201
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Weight 4.3g
Technical
Operating Temperature -40°C~95°C
Packaging Tube
Series ECONOLINE RxxP22005D (2W)
Size / Dimension 0.77Lx0.39W x 0.49 H 19.5mmx9.8mmx12.5mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
Type Isolated Module
Applications ITE (Commercial)
Max Power Dissipation 2W
Technology HYBRID
Terminal Position SINGLE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 9.8mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PSMA-T5
Number of Outputs 2
Efficiency 82%
Voltage - Isolation 5.2kV
Output Voltage 5V
Max Output Current 200mA
Voltage - Output 1 20V
Input Voltage-Nom 5V
Trim/Adjustable Output NO
Current - Output (Max) 50mA 200mA
Output Power 2W
Max Output Voltage 20V
Voltage - Output 2 -5V
Current - Output 1 50A
Max Output Power 2W
Current - Output 2 200A
Max Input Voltage (DC) 5.5V
Min Input Voltage (DC) 4.5V
Dimensions
Height 12.5mm
Length 19.5mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
