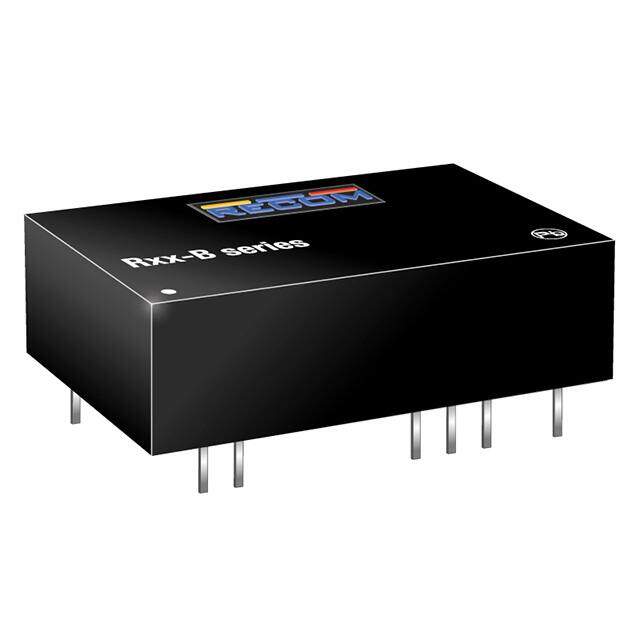

R05-100B
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 41-120V 3W
PDF
/
Buying Options
Total Price: USD $46.57
Unit Price: USD $46.5696
≥1 USD $46.5696
≥10 USD $45.0648
≥100 USD $44.45936
≥500 USD $43.048192
≥1000 USD $41.096176
≥3000 USD $39.925688
Inventory: 128
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 20.3mm
Length 31.8mm
Height 9.4mm
Technical
Min Input Voltage (DC) 4.5V
Max Input Voltage (DC) 6V
Nominal Output Voltage 100V
Isolation Isolated
Max Output Power 5W
Nominal Input Voltage 5V
Current - Output 1 25mA
Max Input Voltage 6V
Min Input Voltage 4.5V
Max Output Voltage 120V
Output Power 5W
Output Current 25mA
Current - Output (Max) 50mA
Voltage - Input (Min) 4.5V
Voltage - Output 1 41V~120V
Max Output Current 25mA
Output Voltage 120V
Voltage - Input (Max) 6V
Voltage - Isolation 3kV
Efficiency 77%
Number of Outputs 1
Depth 31.8mm
Max Power Dissipation 3W
Power (Watts) 3W
Applications ITE (Commercial)
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type High Voltage - Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature SCP
Size / Dimension 1.25Lx0.80W x 0.37 H 31.8mmx20.3mmx9.4mm
Series INNOLINE Rxx-B (5W)
Packaging Tube
Operating Temperature -40°C~85°C With Derating
Physical
Weight 12g
Number of Pins 12
Package / Case 24-DIP Module
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
