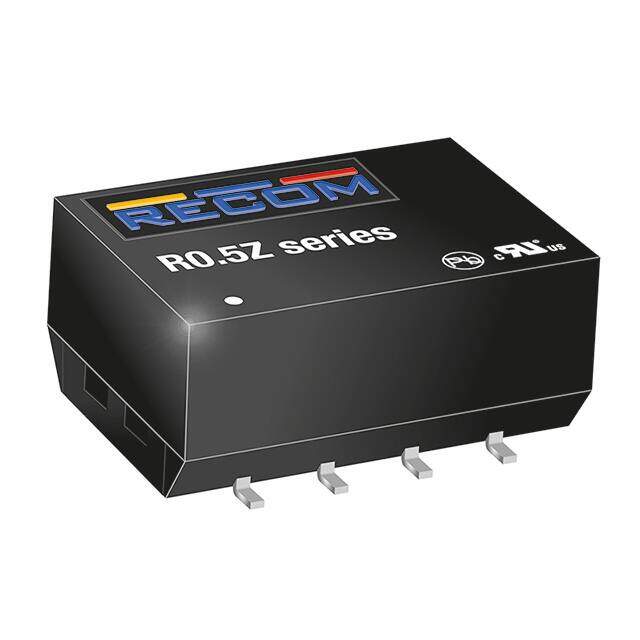

R0.5Z-1215
RoHS
RoHS compliant
RoHS compliantPackage 10-SMD Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 0.5W 12V IN 15V OUT
PDF
/
Buying Options
Total Price: USD $11.96
Unit Price: USD $11.9592
≥1 USD $11.9592
≥10 USD $11.84656
≥100 USD $11.7568
≥500 USD $11.575872
≥1000 USD $11.214016
≥3000 USD $10.2432
Inventory: 62
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 7mm
Technical
Nominal Input Voltage 12V
Total Power Output-Max 0.495W
Current - Output 1 33mA
Max Output Voltage 15V
Output Power 500mW
Output Current 33mA
Trim/Adjustable Output NO
Input Voltage-Nom 12V
Voltage - Input (Min) 11.4V
Max Output Current 33mA
Output Voltage 15V
Voltage - Input (Max) 12.6V
Voltage - Isolation 1kV
Efficiency 62%
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-XDMA-G6
Time@Peak Reflow Temperature-Max (s) 30
Depth 6.7mm
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) 245
Terminal Form GULL WING
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 500mW
Subcategory Other Analog ICs
Applications ITE (Commercial)
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature SCP
JESD-609 Code e1
Size / Dimension 0.60Lx0.42W x 0.28 H 15.2mmx10.7mmx7.0mm
Series ECONOLINE R0.5Z (0.5W)
Packaging Tube
Operating Temperature -40°C~100°C
Physical
Weight 1.2g
Package / Case 10-SMD Module, 6 Leads
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
