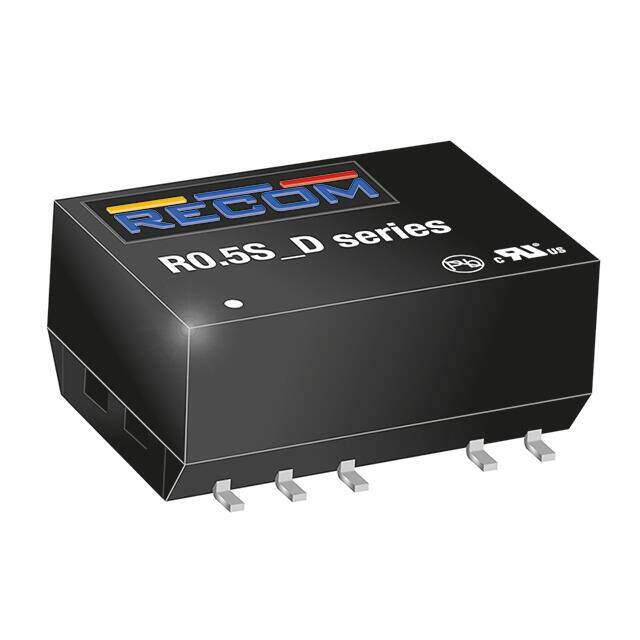

R0.5S8-0512
RoHS
RoHS compliant
RoHS compliantPackage 8-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
0.5W DC/DC-CONVERTER ECONOLINE
PDF
/
Inventory: 5417
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height 7mm
Technical
Total Power Output-Max 0.5W
Max Output Voltage 12V
Output Power 500mW
Output Current 42mA
Trim/Adjustable Output NO
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Max Output Current 42mA
Output Voltage 12V
Voltage - Input (Max) 5.5V
Voltage - Isolation 1kV
Efficiency 77%
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-XDMA-G8
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Form GULL WING
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 500mW
Subcategory Other Analog ICs
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature SCP
Size / Dimension 0.50Lx0.42W x 0.28 H 12.8mmx10.7mmx7.0mm
Series ECONOLINE R0.5S (0.5W)
Packaging Tube
Operating Temperature -40°C~100°C
Physical
Weight 1.1g
Package / Case 8-SMD Module
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
