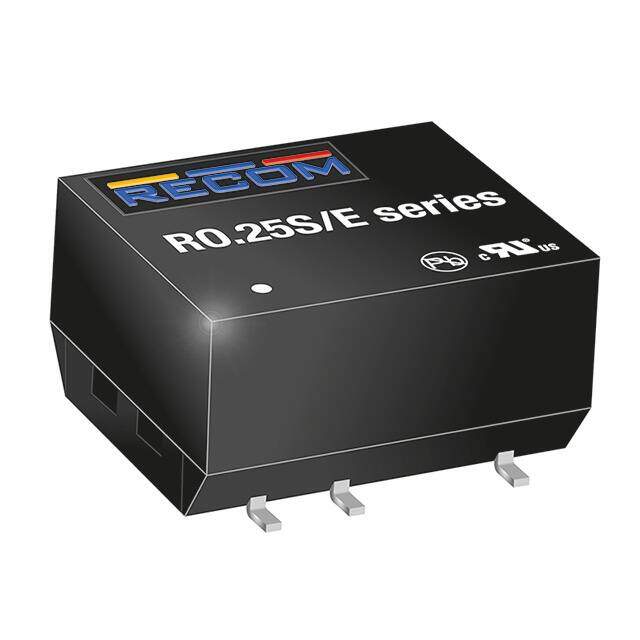

R0.25S8-1205/E
RoHS
RoHS compliant
RoHS compliantPackage 8-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
0.25W DC/DC-CONVERTER ECONOLINE
PDF
/
Inventory: 4789
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-SMD Module
Weight 1g
Technical
Operating Temperature -40°C~100°C
Packaging Tube
Series ECONOLINE R0.25S/E (0.25W)
Size / Dimension 0.50Lx0.42W x 0.28 H 12.8mmx10.7mmx7.0mm
Feature SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Max Power Dissipation 250mW
Technology HYBRID
Terminal Position DUAL
Terminal Form GULL WING
Number of Functions 1
Terminal Pitch 2.54mm
JESD-30 Code R-XDMA-G8
Number of Outputs 1
Efficiency 74%
Voltage - Isolation 1kV
Voltage - Input (Max) 13.2V
Output Voltage 5V
Max Output Current 50mA
Voltage - Input (Min) 10.8V
Input Voltage-Nom 12V
Trim/Adjustable Output NO
Output Current 50mA
Output Power 250mW
Max Output Voltage 5V
Total Power Output-Max 0.25W
Dimensions
Height 7mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
