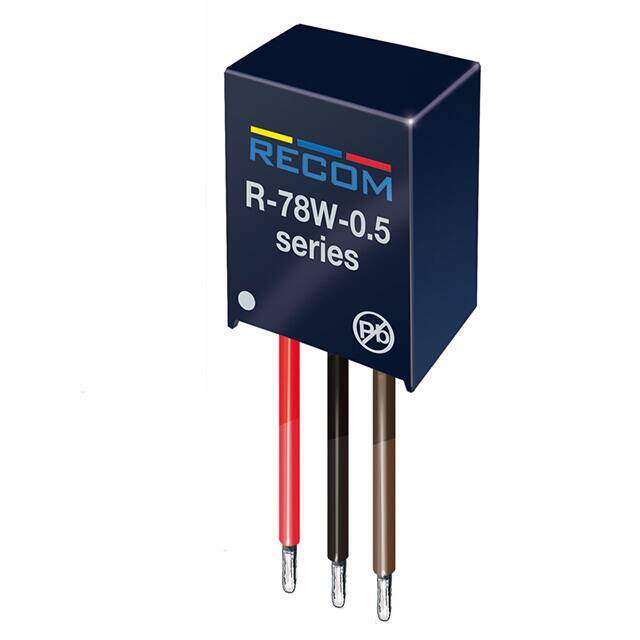

R-78W3.3-0.5
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description
RECOM POWER R-78W3.3-0.5 DC-DC CONVERTER, 3.3V, 0.5A, SIP
PDF
/
Buying Options
Total Price: USD $8.93
Unit Price: USD $8.932
≥1 USD $8.932
≥10 USD $8.8
≥100 USD $8.67328
≥500 USD $8.16288
≥1000 USD $7.90768
≥3000 USD $7.652568
Inventory: 758
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 8.5mm
Height 17.5mm
Technical
Nominal Output Voltage 3.3V
Max Output Power 400mW
Max Output Voltage 3.3V
Output Current 500mA
Voltage - Input (Min) 6.5V
Max Output Current 500mA
Output Voltage 3.3V
Voltage - Input (Max) 32V
Efficiency 90%
Approval Agency CE
Number of Outputs 1
JESD-30 Code R-PSMA-W3
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 17.5mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form WIRE
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 2W
Applications ITE (Commercial)
Type Linear Regulator Replacement
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.69Lx0.45W x 0.33 H 17.5mmx11.5mmx8.5mm
Series INNOLINE R-78-0.5
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Weight 4.8g
Package / Case Module
Mounting Type Chassis Mount
Mount Chassis Mount, Through Hole
Supply Chain
Factory Lead Time 9 Weeks
