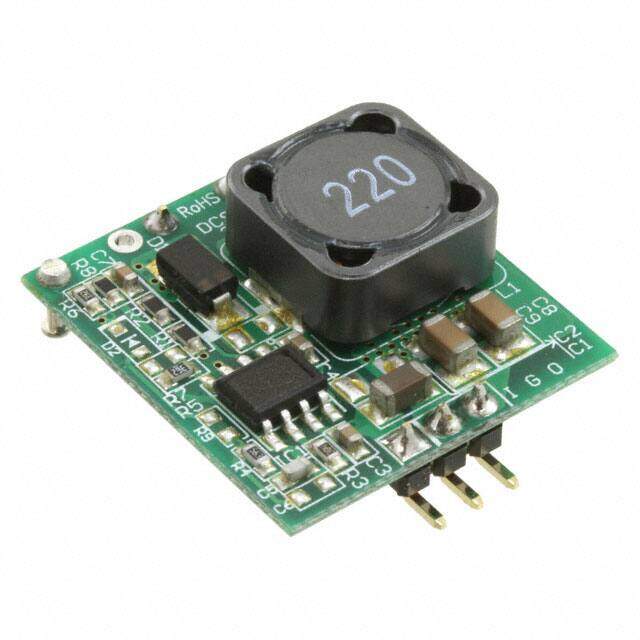

R-78T5.0-1.0/AC-TRAY
RoHS
RoHS compliant
RoHS compliantPackage 3-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 5V 5W
PDF
/
Buying Options
Total Price: USD $11.93
Unit Price: USD $11.9328
≥1 USD $11.9328
≥10 USD $11.83248
≥100 USD $11.74184
≥500 USD $11.56144
≥1000 USD $11.200288
≥3000 USD $10.2344
Inventory: 1526
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 23mm
Length 25mm
Height 10mm
Technical
Total Power Output-Max 5W
Current - Output 1 1A
Voltage - Output 2 5V
Max Output Voltage 5V
Output Power 5W
Output Current 1A
Trim/Adjustable Output NO
Voltage - Input (Min) 8V
Output Voltage 5V
Voltage - Input (Max) 42V
Efficiency 92%
Number of Outputs 1
JESD-30 Code R-XSMA-L3
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form L BEND
Terminal Position SINGLE
Technology HYBRID
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature SCP
Size / Dimension 0.98Lx0.91W x 0.39 H 25.0mmx23.0mmx10.0mm
Series INNOLINE R-78T-1.0
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 4.5g
Package / Case 3-SMD Module
Mounting Type Surface Mount
Mount PCB, Surface Mount
Supply Chain
Factory Lead Time 9 Weeks
