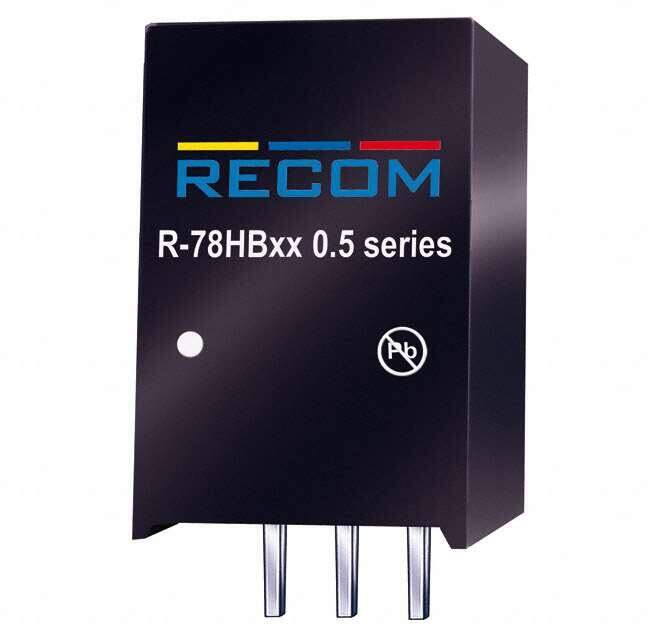

R-78HB6.5-0.5
RoHS
RoHS compliant
RoHS compliantPackage 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 6.5V 3W
PDF
/
Buying Options
Total Price: USD $13.84
Unit Price: USD $13.8424
≥1 USD $13.8424
≥10 USD $13.73856
≥100 USD $13.63384
≥500 USD $13.424576
≥1000 USD $13.004992
≥3000 USD $11.8624
Inventory: 167
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height 17.5mm
Technical
Min Input Voltage (DC) 9V
Max Input Voltage (DC) 72V
Isolation Voltage 1.6kV
Nominal Output Voltage 6.5V
Isolation Non-Isolated
Max Output Power 3.25W
Nominal Input Voltage 48V
Max Output Voltage 6.5V
Output Power 3.25W
Output Current 500mA
Trim/Adjustable Output NO
Input Voltage-Nom 48V
Max Output Current 500mA
Output Voltage 6.5V
Efficiency 91%
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-PSMA-T3
Depth 8.5mm
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 3.25W
Subcategory Other Analog ICs
Power (Watts) 3W
Applications ITE (Commercial)
Type Linear Regulator Replacement
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature OTP, SCP
Size / Dimension 0.45Lx0.33W x 0.69 H 11.5mmx8.5mmx17.5mm
Series INNOLINE R-78HB
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Weight 4g
Package / Case 3-SIP Module
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Factory Lead Time 9 Weeks
