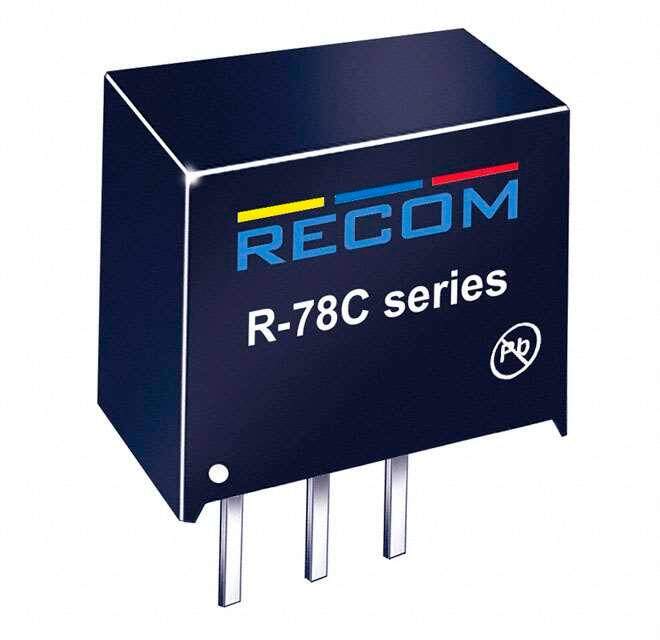

R-78C1.8-1.0
RoHS
RoHS compliant
RoHS compliantPackage 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 1A 1.8V OUT SIP VERT
PDF
/
Buying Options
Total Price: USD $9.35
Unit Price: USD $9.3544
≥1 USD $9.3544
≥10 USD $9.28576
≥100 USD $9.21448
≥500 USD $9.0728
≥1000 USD $8.789264
≥3000 USD $8.0344
Inventory: 1195
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height 10.4mm
Technical
Min Input Voltage (DC) 5V
Max Input Voltage (DC) 42V
Nominal Output Voltage 1.8V
Max Output Power 1.8W
Current - Output 1 1A
Max Output Voltage 1.8V
Output Power 1.8W
Output Current 1A
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Max Output Current 1A
Output Voltage 1.8V
Voltage - Input (Max) 42V
Efficiency 80%
Number of Outputs 1
Depth 8.5mm
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 1.8W
Power Rating 1.8W
Applications ITE (Commercial)
Type Linear Regulator Replacement
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature OTP, SCP
Size / Dimension 0.46Lx0.33W x 0.41 H 11.6mmx8.5mmx10.4mm
Series INNOLINE R-78C-1.0
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Weight 2g
Number of Pins 3
Package / Case 3-SIP Module
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Factory Lead Time 9 Weeks
