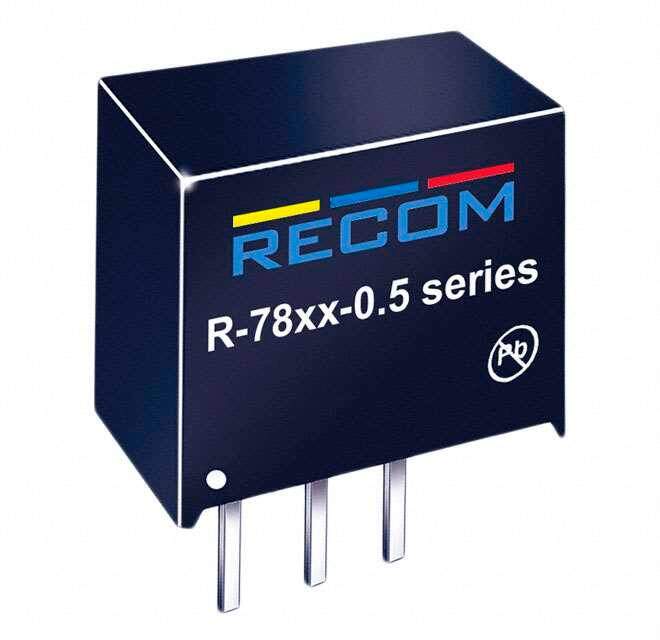

R-781.5-0.5
RoHS
RoHS compliant
RoHS compliantPackage 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 0.5A 4.75-30VIN 1.5V
PDF
/
Inventory: 1137
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height 10.2mm
Technical
Switching Frequency 380kHz
Min Input Voltage (DC) 18V
Max Input Voltage (DC) 32V
Isolation Voltage 1.6kV
Nominal Output Voltage 15V
Isolation Non-Isolated
Max Output Power 7.5W
Nominal Input Voltage 24V
Current - Output 1 500mA
Max Output Voltage 1.5V
Output Power 7.5W
Output Current 500mA
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 4.75V
Max Output Current 500mA
Output Type Fixed
Output Voltage 1.5V
Voltage - Input (Max) 30V
Efficiency 73%
Qualification Status Not Qualified
Number of Outputs 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 11.5mm
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 750mW
Power Rating 2.5W
Subcategory Other Analog ICs
Power (Watts) 750mW
Applications ITE (Commercial)
Type Linear Regulator Replacement
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature OTP, SCP
Size / Dimension 0.45Lx0.30W x 0.40 H 11.5mmx7.5mmx10.2mm
Series INNOLINE R-78-0.5
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Weight 1.9g
Number of Pins 3
Package / Case 3-SIP Module
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Factory Lead Time 9 Weeks
