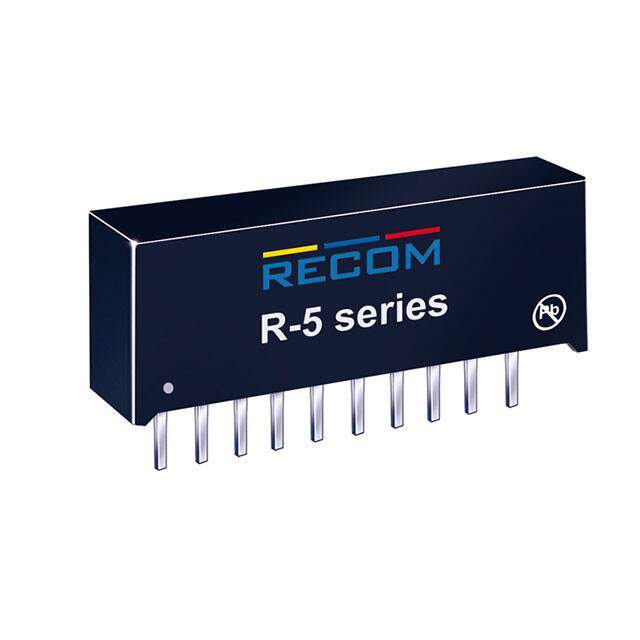

R-555.0DA
RoHS
RoHS compliant
RoHS compliantPackage 12-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 5A 7-18VIN 5V
PDF
/
Inventory: 1495
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole, Right Angle
Package / Case 12-SIP Module
Weight 9g
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Series INNOLINE R-5xxxA
Size / Dimension 1.27Lx0.59W x 0.36 H 32.2mmx15.0mmx9.1mm
Feature Remote On/Off, OCP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Max Power Dissipation 25W
Number of Outputs 1
Efficiency 94%
Voltage - Input (Max) 18V
Output Voltage 3V
Max Output Current 5A
Voltage - Output 1 5V
Voltage - Input (Min) 7V
Output Current 5A
Control Features Enable, Active High
Max Output Voltage 5.5V
Nominal Input Voltage 12V
Isolation Voltage 2kV
Dimensions
Height 15mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
