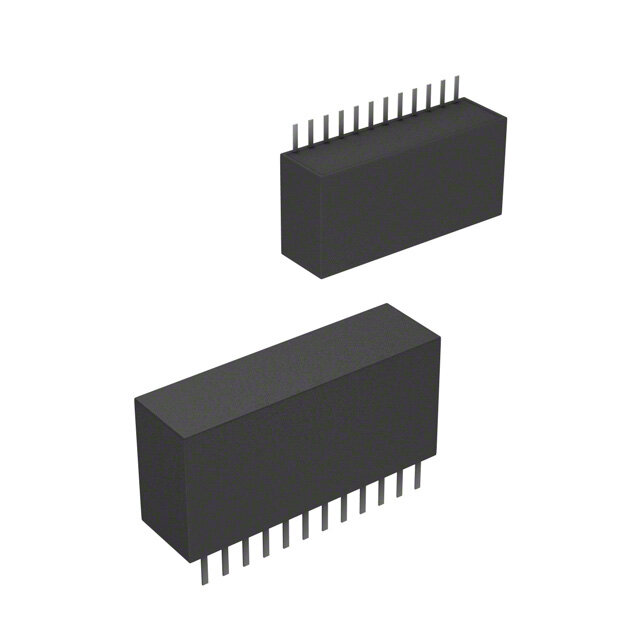

R-543.3PA
RoHS
RoHS compliant
RoHS compliantPackage 12-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
4A DC/DC-Converter 'INNOLINE' SIP12 reg; V. In: 4.5-18; V. Out: 1.6-5.5; mA. Out: 4000
PDF
/
Buying Options
Total Price: USD $25.84
Unit Price: USD $25.8368
≥1 USD $25.8368
≥10 USD $25.2384
≥100 USD $25.04304
≥500 USD $24.651616
≥1000 USD $23.477696
≥3000 USD $22.140888
Inventory: 101
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case 12-SIP Module
Weight 9g
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Series INNOLINE R-5xxxA
Size / Dimension 1.27Lx0.36W x 0.59 H 32.2mmx9.1mmx15.0mm
Feature Remote On/Off, OCP, SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Max Power Dissipation 13.2W
Depth 32.2mm
Number of Outputs 1
Efficiency 93%
Output Voltage 5.5V
Max Output Current 4A
Voltage - Input (Min) 4.5V
Current - Output (Max) 4A
Output Current 4A
Output Power 13.2W
Control Features Enable, Active High
Max Output Voltage 5.5V
Nominal Input Voltage 12V
Min Output Voltage 1.6V
Max Output Power 22W
Nominal Output Voltage 3.3V
Isolation Voltage 1kV
Max Input Voltage (DC) 18V
Min Input Voltage (DC) 4.5V
Dimensions
Height 15mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
