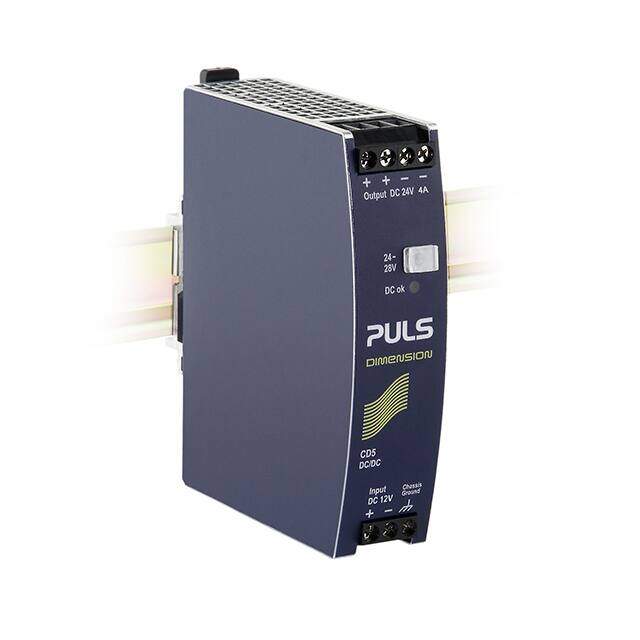

CD5.243
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description
PULS 96W Isolated DC-DC Converter, Vin 8.416.2 V dc, Vout 24V dc
PDF
/
Buying Options
Total Price: USD $344.52
Unit Price: USD $344.52
≥1 USD $344.52
Inventory: 50
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 32mm
Length 124mm
Technical
Nominal Input Voltage 12V
Current - Output 1 4A
Output Current 4.8A
Current - Output (Max) 4A
Voltage - Input (Min) 10.8V
Voltage - Output 1 24V
Output Voltage 24V
Voltage - Input (Max) 16.2V
Efficiency 87.7%
Approval Agency CB, cCSAus, CE, cULus, cURus
Number of Outputs 1
Depth 102mm
Power Rating 96W
Power (Watts) 84W
Applications ITE (Commercial)
Min Operating Temperature -25°C
Max Operating Temperature 70°C
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 4.02Lx1.26W x 4.88 H 102.0mmx32.0mmx124.0mm
Series DIMENSION CD (92 ~ 120W)
Packaging Bulk
Operating Temperature -25°C~70°C With Derating
Physical
Weight 435g
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 2 Weeks
