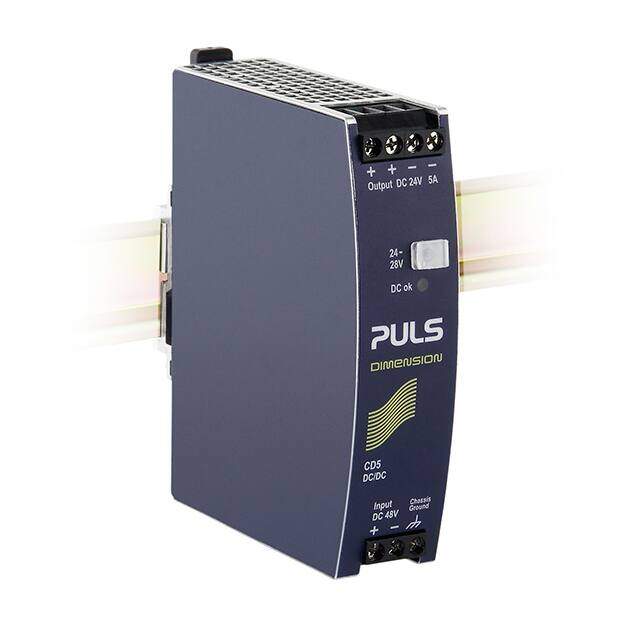

CD5.242
RoHS
RoHS compliant
RoHS compliantPackage 120
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description
DC/DC converter 23. . .28 VDC 120 W, CD5.242, Puls
PDF
/
Buying Options
Total Price: USD $364.64
Unit Price: USD $364.639968
≥1 USD $364.639968
≥10 USD $343.999974
≥100 USD $324.528275
≥500 USD $306.158748
≥1000 USD $288.829006
Inventory: 1599
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Isolation Voltage 500V
Nominal Input Voltage 48V
Current - Output 1 5A
Output Current 5A
Trim/Adjustable Output YES
Input Voltage-Nom 48V
Voltage - Input (Min) 36V
Output Voltage 24V
Voltage - Input (Max) 60V
Efficiency 90.3%
Approval Agency CB, cCSAus, CE, cULus, cURus
Number of Outputs 1
JESD-30 Code R-PXMA-X8
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 102mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Power Rating 120W
Additional Feature IT ALSO OPERATES WITH INPUT VOLTAGE 30.5 TO 36
Power (Watts) 120W
Applications ITE (Commercial)
Type Enclosed
Number of Terminations 8
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Size / Dimension 4.02Lx1.26W x 4.88 H 102.0mmx32.0mmx124.0mm
Series DIMENSION CD (92 ~ 120W)
Packaging Bulk
Operating Temperature -25°C~70°C With Derating
Physical
Weight 425g
Package / Case 120
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 2 Weeks
