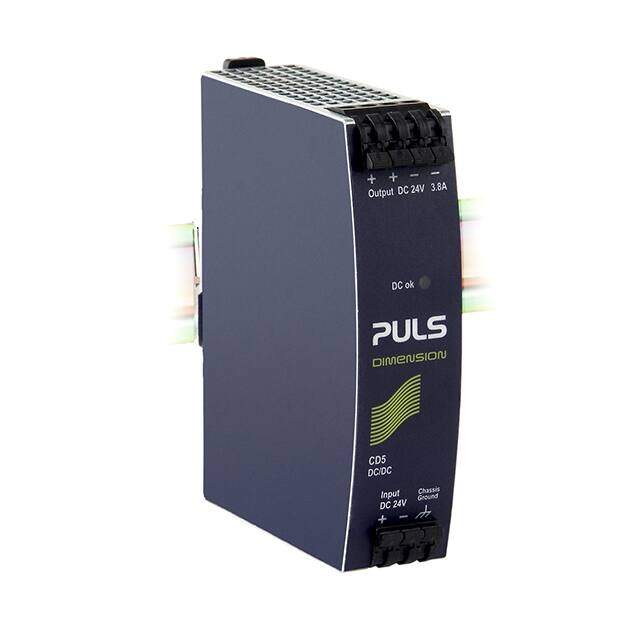

CD5.241-L1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description
DC/DC CONVERTER 24V 92W
PDF
/
Buying Options
Total Price: USD $384.12
Unit Price: USD $384.12
≥1 USD $384.12
Inventory: 103
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Total Power Output-Max 92W
Current - Output (Max) 3.8A
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 14.4V
Voltage - Output 1 24V
Output Voltage 24.1V
Voltage - Input (Max) 32.4V
Efficiency 90.5%
Approval Agency CB, cCSAus, CE, cULus, cURus
Number of Outputs 1
JESD-30 Code R-PXMA-X7
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Power (Watts) 92W
Applications ITE (Commercial)
Type Enclosed
Number of Terminations 7
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Size / Dimension 4.02Lx1.26W x 4.88 H 102.0mmx32.0mmx124.0mm
Series DIMENSION CD (92 ~ 120W)
Packaging Bulk
Operating Temperature -25°C~70°C With Derating
Physical
Surface Mount NO
Mounting Type DIN Rail
Supply Chain
Factory Lead Time 2 Weeks
