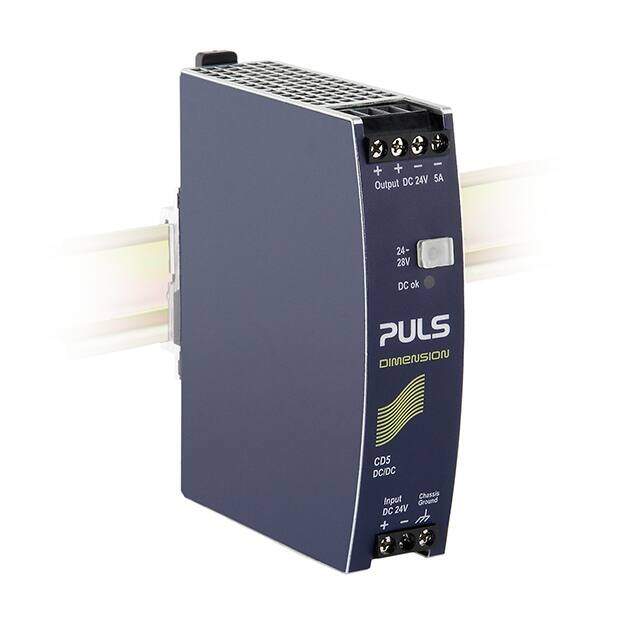

CD5.241
RoHS
RoHS compliant
RoHS compliantPackage 120
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description
PULS 120W Isolated DC-DC Converter, Vin 1832.4 V dc, Vout 24V dc, I/O isolation 500V dc
PDF
/
Buying Options
Total Price: USD $304.92
Unit Price: USD $304.92
≥1 USD $304.92
Inventory: 121
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Isolation Voltage 500V
Nominal Input Voltage 24V
Current - Output 1 5A
Output Current 5A
Trim/Adjustable Output YES
Input Voltage-Nom 24V
Voltage - Input (Min) 18V
Output Voltage 24V
Voltage - Input (Max) 32.4V
Efficiency 90.3%
Approval Agency CB, cCSAus, CE, cULus, cURus
Number of Outputs 1
JESD-30 Code R-XXMA-X8
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 102mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Power Rating 120W
Applications ITE (Commercial)
Type Enclosed
Number of Terminations 8
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Size / Dimension 4.02Lx1.26W x 4.88 H 102.0mmx32.0mmx124.0mm
Series DIMENSION CD (92 ~ 120W)
Packaging Bulk
Operating Temperature -25°C~70°C With Derating
Physical
Weight 425g
Package / Case 120
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 2 Weeks
