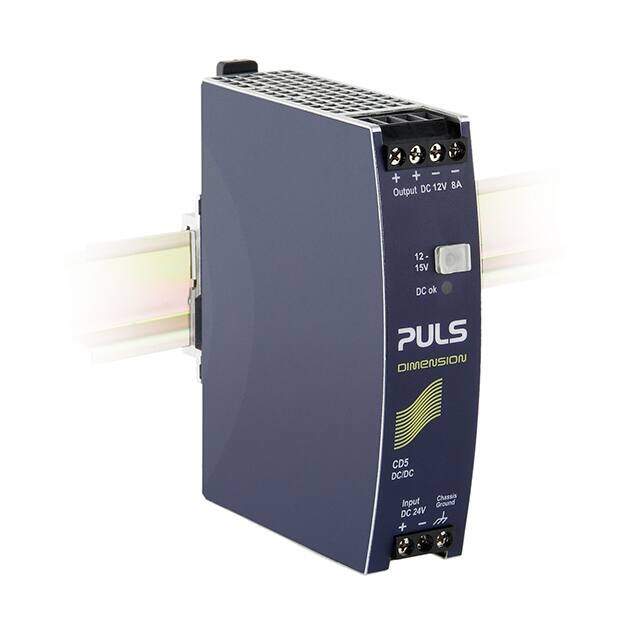

CD5.121
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description
PULS 96W Isolated DC-DC Converter, Vin 1832.4 V dc, Vout 12V dc, I/O isolation 500V dc
PDF
/
Buying Options
Total Price: USD $352.44
Unit Price: USD $352.44
≥1 USD $352.44
Inventory: 87
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 32mm
Technical
Isolation Voltage 500V
Nominal Input Voltage 24V
Current - Output 1 8A
Output Current 8A
Input Voltage-Nom 24V
Voltage - Input (Min) 18V
Output Voltage 12V
Voltage - Input (Max) 32.4V
Efficiency 88.2%
Approval Agency CB, cCSAus, CE, cULus, cURus
Number of Outputs 1
Depth 102mm
Power Rating 96W
Subcategory Power Supply Modules
Power (Watts) 96W
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 4.02Lx1.26W x 4.88 H 102.0mmx32.0mmx124.0mm
Series DIMENSION CD (92 ~ 120W)
Packaging Bulk
Operating Temperature -25°C~70°C With Derating
Physical
Weight 425g
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 2 Weeks
