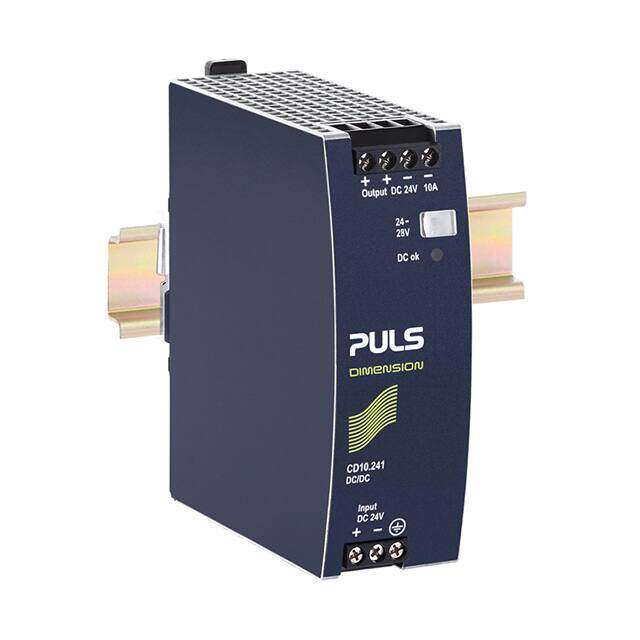

CD10.241
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description
DC/DC CONVERTER, 240W, 18-35VDC
PDF
/
Buying Options
Total Price: USD $399.96
Unit Price: USD $399.96
≥1 USD $399.96
Inventory: 119
Minimum: 1
-
+
Technical Details
Technical
Voltage - Input (Max) 35V
Voltage - Output 1 24V
Voltage - Input (Min) 18V
Current - Output (Max) 10A
Voltage - Isolation 500V
Efficiency 94.2%
Approval Agency CE, cULus
Number of Outputs 1
Power (Watts) 240W
Applications Hazardous Locations, Industrial, ITE (Commercial), Laboratory
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 4.61Lx1.65W x 4.88 H 117.0mmx42.0mmx124.0mm
Series DIMENSION CD (240W)
Operating Temperature -25°C~70°C With Derating
Compliance
RoHS Status RoHS Compliant
Physical
Mounting Type DIN Rail
