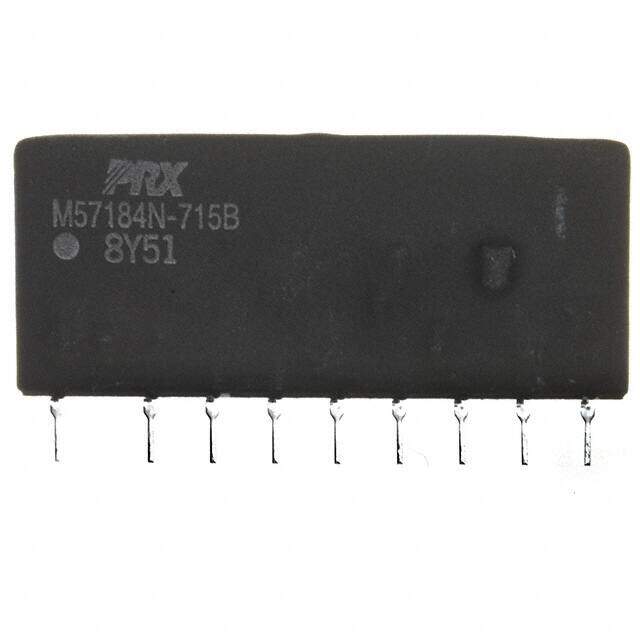

M57184N-715B
RoHS
RoHS compliant
RoHS compliantPackage 18-SIP Module, 9 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC-DC STPDWN IPM 9-SIP
PDF
/
Inventory: 8908
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 18-SIP Module, 9 Leads
Number of Pins 9
Technical
Operating Temperature -20°C~70°C
Packaging Bulk
Published 2003
Size / Dimension 2.05Lx0.47W x 0.95 H 52.1mmx11.9mmx24.1mm
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 9
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Max Power Dissipation 6W
Technology HYBRID
Terminal Position SINGLE
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 52mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Outputs 2
Qualification Status Not Qualified
Output Voltage 15V
Max Output Current 200mA
Voltage - Input (Min) 140V
Input Voltage-Nom 280V
Trim/Adjustable Output NO
Current - Output (Max) 350mA 200mA
Voltage - Output 2 5V
Nominal Output Voltage 15V
Max Input Voltage (DC) 360V
Min Input Voltage (DC) 140V
Dimensions
Height 24mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
