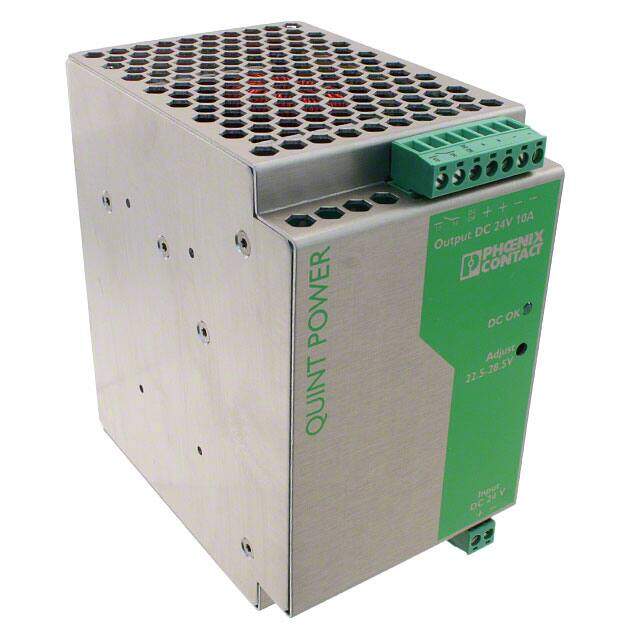

2866378
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description
CONVERTER DC-DC 24V/24V 10A
PDF
/
Buying Options
Total Price: USD $938.2
Unit Price: USD $938.2042
≥1 USD $938.2042
≥10 USD $907.354154
≥25 USD $901.046833
≥50 USD $894.783344
≥100 USD $876.379381
≥500 USD $813.722727
Inventory: 9788
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail
Package / Case Module
Weight 950g
Technical
Operating Temperature -25°C~70°C
Published 2002
Series Quint
Size / Dimension 4.92Lx3.15W x 5.12 H 125.0mmx80.0mmx130.0mm
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Enclosed
Applications ITE (Commercial)
Max Power Dissipation 240W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 125mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code X-XXMA-X
Number of Outputs 1
Approval Agency cUL, EN, UL, VDE
Efficiency 88%
Voltage - Input (Max) 32V
Output Voltage 24V
Voltage - Input (Min) 18V
Input Voltage-Nom 24V
Trim/Adjustable Output YES
Output Current 10A
Output Power 2W
Current - Output 1 10A
Nominal Input Voltage 24V
Isolation Voltage 1.5kV
Dimensions
Height 130.048mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
