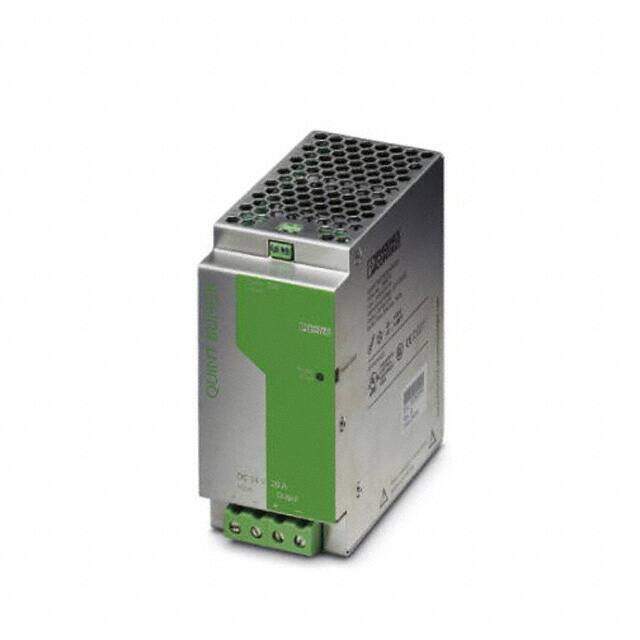

2866213
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description
DC/DC Power Supply Single-OUT 24V 20A 5-Pin
PDF
/
Buying Options
Total Price: USD $602.28
Unit Price: USD $602.2808
≥1 USD $602.2808
≥10 USD $554.09552
Inventory: 29
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height 130.048mm
Technical
Nominal Input Voltage 24V
Output Power 480W
Output Current 20A
Voltage - Input (Min) 22.5V
Output Voltage 24V
Voltage - Input (Max) 30V
Efficiency 95%
Approval Agency cUL, EN, UL, VDE
Number of Outputs 1
Current Rating 20.6A
Depth 125mm
Max Power Dissipation 480W
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 4.92Lx2.52W x 5.12 H 125.0mmx64.0mmx130.0mm
Series Quint
Published 2002
Packaging Bulk
Operating Temperature -25°C~70°C
Physical
Weight 1.000001g
Number of Pins 5
Package / Case Module
Mounting Type DIN Rail
Mount DIN Rail, Horizontal
Supply Chain
Factory Lead Time 4 Weeks
