2320131
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description

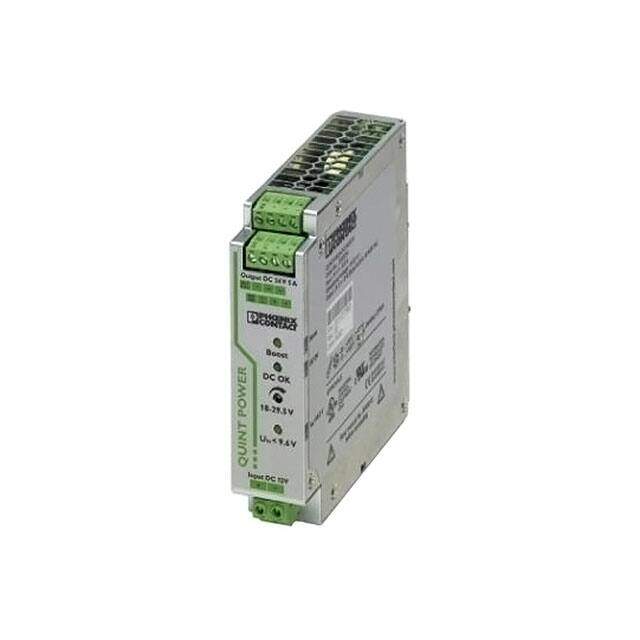

Isolated DC/DC Converters QUINT-PS/12DC/24DC/5
PDF
/
Buying Options
Total Price: USD $463.11
Unit Price: USD $463.11068
≥1 USD $463.11068
≥10 USD $436.89687
≥100 USD $412.166863
≥500 USD $388.836658
≥1000 USD $366.827036
Inventory: 1081
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail
Package / Case Module
Weight 400g
Technical
Operating Temperature -25°C~70°C
Packaging Bulk
Published 2014
Series Quint
Size / Dimension 4.92Lx1.26W x 5.12 H 125.0mmx32.0mmx130.0mm
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
ECCN Code EAR99
Type Enclosed
Applications ITE (Commercial)
Max Power Dissipation 120W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 125mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XXMA-X
Number of Outputs 1
Approval Agency CB, cULus
Efficiency 90%
Voltage - Input (Max) 18V
Output Voltage 24V
Voltage - Input (Min) 9V
Input Voltage-Nom 12V
Trim/Adjustable Output NO
Output Current 5A
Output Power 120W
Current - Output 1 5A
Nominal Input Voltage 12V
Max Output Power 120W
Isolation Voltage 1kV
Dimensions
Height 130.048mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
