2320102
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description

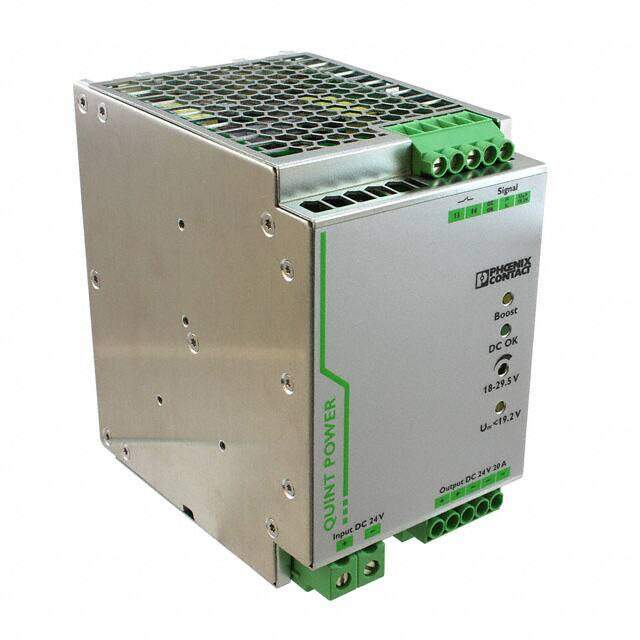

Isolated DC/DC Converters QUINT-PS/ 24DC/ 24DC/20
PDF
/
Buying Options
Total Price: USD $527.14
Unit Price: USD $527.142018
≥1 USD $527.142018
≥10 USD $497.303796
≥100 USD $469.154522
≥500 USD $442.598607
≥1000 USD $417.545855
Inventory: 1241
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Height 130.048mm
Technical
Min Input Voltage (DC) 18V
Max Input Voltage (DC) 32V
Isolation Isolated
Max Output Power 400W
Min Output Voltage 18V
Nominal Input Voltage 24V
Current - Output 1 20A
Max Output Voltage 29.5V
Output Power 400W
Output Current 20A
Input Voltage-Nom 24V
Output Voltage 24V
Efficiency 93%
Approval Agency cULus, VDE
Number of Outputs 1
JESD-30 Code X-XXMA-X
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 82mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Max Power Dissipation 480W
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 4.92Lx3.23W x 5.12 H 125.0mmx82.0mmx130.0mm
Series Quint
Published 2012
Packaging Bulk
Operating Temperature -25°C~60°C
Physical
Weight 1.7kg
Number of Pins 12
Package / Case Module
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 7 Weeks
