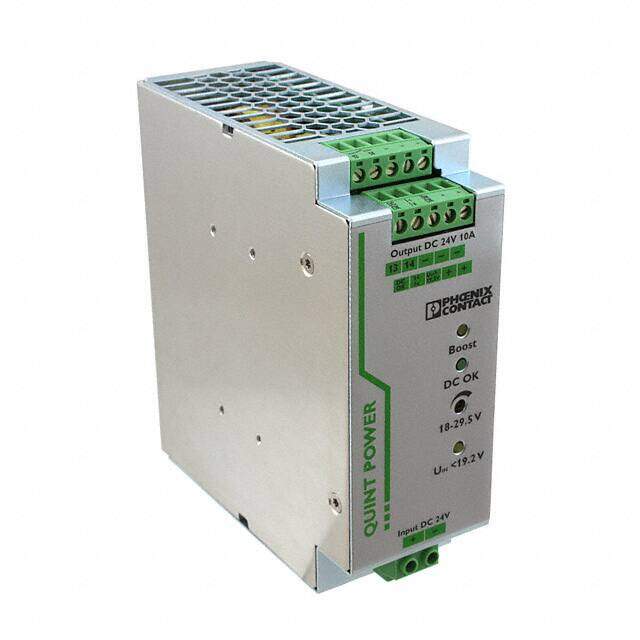

2320092
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description
Isolated DC/DC Converters QUINT-PS/24DC/ 24DC/10
PDF
/
Buying Options
Total Price: USD $446.6
Unit Price: USD $446.6
≥1 USD $446.6
≥10 USD $410.87376
Inventory: 69
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height 130.048mm
Technical
Nominal Input Voltage (DC) 24V
Isolation Isolated
Nominal Input Voltage 24V
Current - Output 1 10A
Output Power 1.6W
Output Current 10A
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 18V
Output Voltage 24V
Voltage - Input (Max) 32V
Efficiency 92%
Approval Agency cULus, VDE
Number of Outputs 1
JESD-30 Code R-XXMA-X
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 48mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Max Power Dissipation 240W
Applications ITE (Commercial)
Type Enclosed
ECCN Code EAR99
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 4.92Lx1.89W x 5.12 H 125.0mmx48.0mmx130.0mm
Series Quint
Published 2012
Packaging Bulk
Operating Temperature -25°C~60°C
Physical
Weight 900g
Number of Pins 12
Package / Case Module
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 4 Weeks
