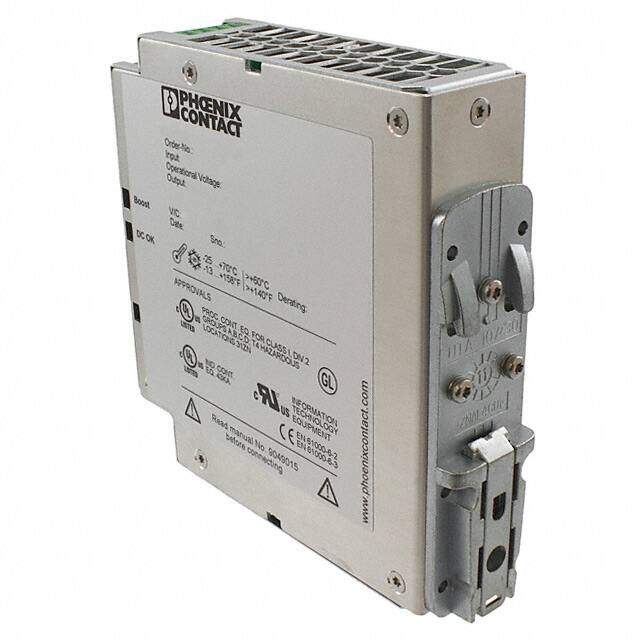

2320034 image
Favorite
2320034 image
Favorite
RoHS
RoHS RoHS compliant
Package Module
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description Isolated DC/DC Converters QUINT-PS/24DC/24DC/5
PDF
/
Buying Options
Total Price: USD $280
Unit Price: USD $280
≥1 USD $280
Inventory: 48
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Width 32mm
Length 125mm

Technical

Nominal Input Voltage (DC) 24V
Isolation Isolated
Nominal Input Voltage 24V
Current - Output 1 5A
Output Power 2.4W
Output Current 5A
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 18V
Output Voltage 24V
Voltage - Input (Max) 32V
Efficiency 92%
Approval Agency cULus
Number of Outputs 1
JESD-30 Code R-XXMA-X
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 32mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Max Power Dissipation 120W
Applications ITE (Commercial)
Type Enclosed
ECCN Code EAR99
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series Quint
Published 2012
Packaging Bulk
Operating Temperature -25°C~60°C

Physical

Weight 700g
Package / Case Module
Mounting Type Rack Mount
Mount DIN Rail, Rack

Supply Chain

Factory Lead Time 4 Weeks
