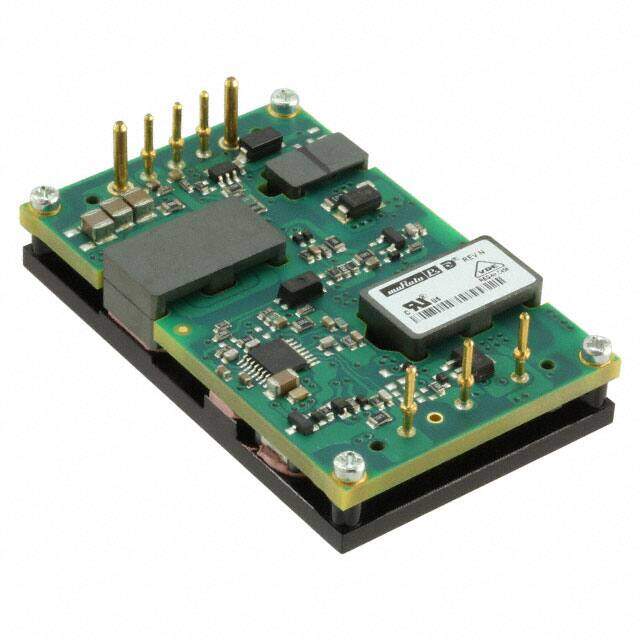

UVQ-18/6-D48NB-C
RoHS
/
Package 8-DIP Module, 1/4 Brick
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC-DC 1-OUT 18V 6A 108W 8-Pin Quarter-Brick
PDF
/
Inventory: 8757
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 8-DIP Module, 1/4 Brick
Number of Pins 8
Technical
Operating Temperature -40°C~110°C
Packaging Tray
Series UVQ
Size / Dimension 2.30Lx1.45W x 0.50 H 58.4mmx36.8mmx12.7mm
Feature Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 9
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Max Power Dissipation 108W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
Pin Count 9
JESD-30 Code R-XDMA-P9
Number of Outputs 1
Efficiency 90%
Voltage - Isolation 2.25kV
Voltage - Input (Max) 75V
Output Voltage 18V
Max Output Current 6A
Voltage - Input (Min) 36V
Input Voltage-Nom 48V
Trim/Adjustable Output YES
Output Current 6A
Output Power 11W
Control Features Enable, Active Low
Current - Output 1 6A
Nominal Input Voltage 48V
Dimensions
Height 12.7mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
