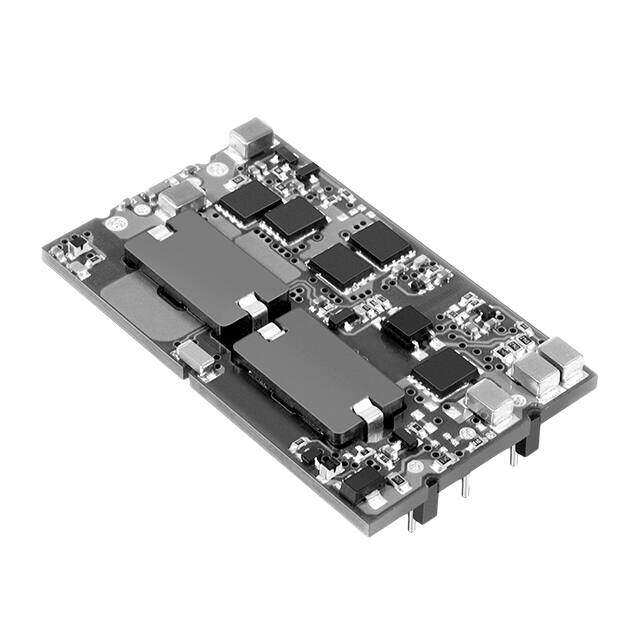

ULQ-5/15-D48N-C
RoHS
/
Package 8-DIP Module, 1/4 Brick
Category Power Supplies - Board Mount / DC DC Converters
Description
Isolated DC/DC Converters 75W 48V to 5V 15A NEGATIVE POLARITY
PDF
/
Inventory: 9775
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 8-DIP Module, 1/4 Brick
Number of Pins 8
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series ULQ
Size / Dimension 2.22Lx1.35W x 0.38 H 56.4mmx34.3mmx9.53mm
JESD-609 Code e4
Feature Remote On/Off, OTP, OVP, SCP, UVLO
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Type Isolated Module
Terminal Finish GOLD OVER NICKEL
Applications ITE (Commercial)
Max Power Dissipation 75W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Pin Count 8
Number of Outputs 1
Efficiency 91%
Voltage - Isolation 2.25kV
Voltage - Input (Max) 75V
Output Voltage 5V
Max Output Current 15A
Voltage - Input (Min) 36V
Input Voltage-Nom 48V
Trim/Adjustable Output YES
Output Current 15A
Output Power 75W
Control Features Enable, Active Low
Current - Output 1 15A
Nominal Input Voltage 48V
Dimensions
Height 9.652mm
Length 56.4mm
Width 34.3mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
