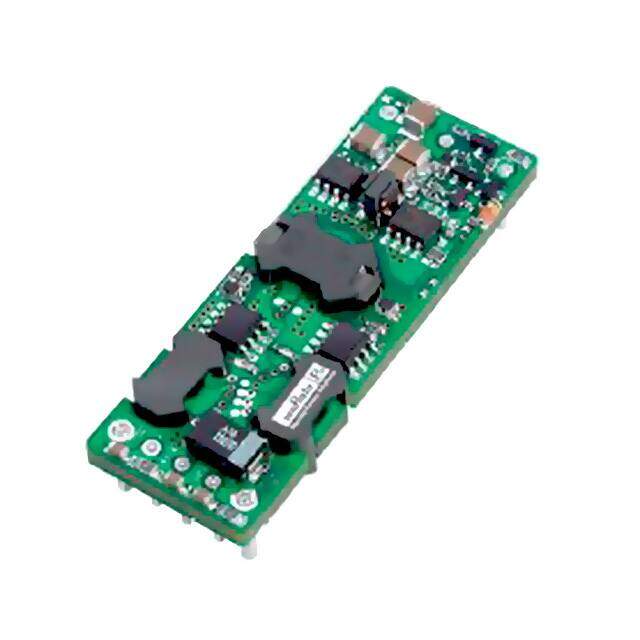

ULE-1.5/20-D48N-C
RoHS
/
Package 8-DIP Module, 1/8 Brick
Category Power Supplies - Board Mount / DC DC Converters
Description
Isolated DC/DC Converters 30W 48V to 1.5V 20A NEGATIVE POLARITY
PDF
/
Inventory: 2736
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 8-DIP Module, 1/8 Brick
Number of Pins 8
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series ULE
Size / Dimension 2.22Lx0.89W x 0.41 H 56.4mmx22.6mmx10.4mm
JESD-609 Code e4
Feature Remote On/Off, OCP, OTP, SCP, UVLO
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Type Isolated Module
Terminal Finish GOLD (5) OVER NICKEL (50)
Applications ITE (Commercial)
Max Power Dissipation 30W
Technology HYBRID
Terminal Position DUAL
Number of Functions 1
Pin Count 8
Number of Outputs 1
Efficiency 88%
Voltage - Isolation 2.25kV
Voltage - Input (Max) 75V
Output Voltage 1.5V
Max Output Current 20A
Voltage - Input (Min) 36V
Input Voltage-Nom 48V
Trim/Adjustable Output YES
Output Current 20A
Output Power 30W
Control Features Enable, Active Low
Current - Output 1 20A
Nominal Input Voltage 48V
Dimensions
Height 10.414mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
